600*400Mm Airport Baggage Scanner , 0.22m / S X Ray Luggage Scanner

Ask Lasest Price
Brand Name :	Uniqscan
Model Number :	SF6040
Certification :	CE ISO
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	1000 sets per month
Delivery Time :	in one week

Add to Cart

Product Details
Company Profile

600*400Mm Airport Baggage Scanner , 0.22m / S X Ray Luggage Scanner

600*400Mm Airport Baggage Scanner , 0.22m / S X Ray Luggage Scanner

X-RAY generator
Orientation: Upward
Tube Current:0.4~0.7mA(adjustable)
Anode Voltage:80KV(adjustable)
Angle: 60°
Generator cooling/working periods:
Sealed oil bath with forced air/100%

Film Safety: For ISO 1600

Features

Single-Energy ,L-shaped array detector

apan HAMMATSU detector crystal , Detecting board from Deetee Finland.

IPC from Taiwan , Interroll Roller from German

High-resolution PHILIP 19 inch color LCD display

Four colors to distinguish organic , inorganic and dangerous material

Multiple functions: High/Low penetration display, Magnifier, Brightening/dimming,

Image enlarge, recurrence, restoration, storage, network

Application:
Exhibition center, Electronic Factory, Bank, Prison, Government office,Hotel etc

Parameter
General specification	X-ray Generator
Tunnel Size : 500(W)×300(H)mm	Orientation: Upward;
Conveyor Speed: 0.22m/s	Tube Current: 0.4~0.7MA(adjustable)
Conveyor Max Load: 100 kg	Anode voltage: 80KV(adjustable)
Single inspection dosage:< 1.32μGy	X-ray divergence angle: 60 °
Leakage radiation dosage:≤ 0.14µGy/h	Generator cooling/working periods:
Wire resolution: 40AWG	sealed oil bath with forced air/100%
Spatial resolution :1.0mm Horizontal ;1.0mm Vertical	X-RAY Sensor:
Steel Penetration: 10mm steel plate	L-shaped array detector, 24bit
Film safety: for ISO1600

Our service
2 years warranty for free parts.
Free training in the factoty and on the video.
We have professional global team to solve your pronlem
We provide the HD images and video also can do in your brand(OEM)
We can fly to you local to help you finish installing and so on business.

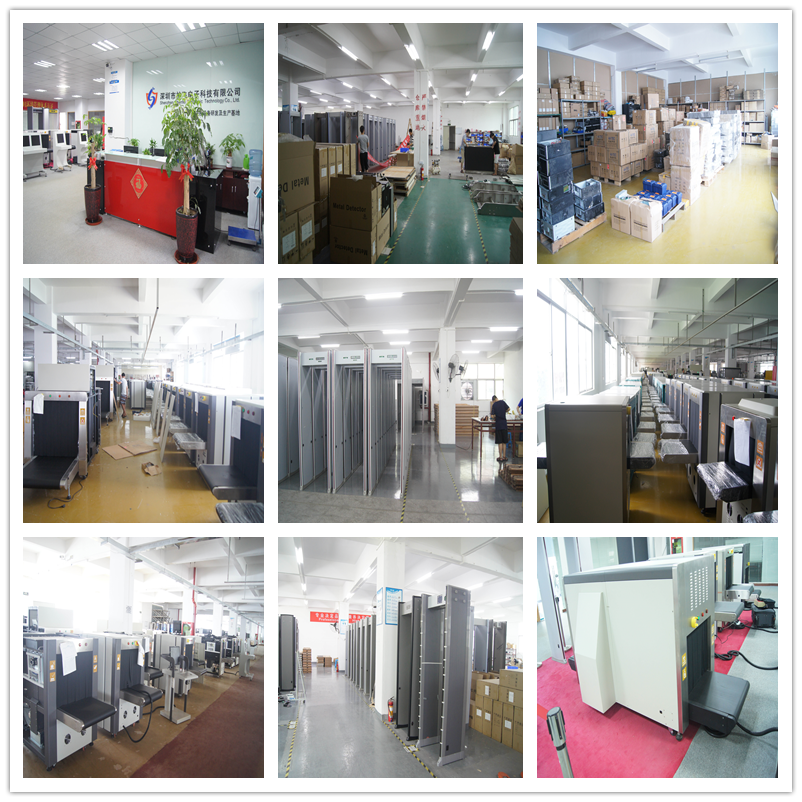

Our successful cases
