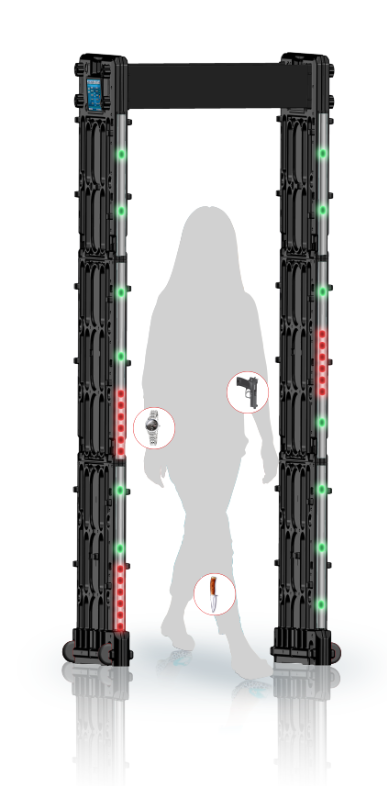

UM700 body scanner commercial metal detector Walk through 24 detecting zones

Description

Anti-terrorist and Police equipment.
Potable and foldable, waterproof ,can be transported in a car or van.
Single person assembly without tools-in less than 5 minutes.
Optional built in black-up battery which can working for at least 40 hours.


Functions and characters:

Self diagnostic, it will inform the user when exit the system.
Memory Feature Stores Settings for last operator when power off.
DSP and Microprocessor Controlled , login into the control panel safely.
Head-to-Toe, Zone Specific Detected.
300 adjustable sensibility levels.
There are 16 individual detect zones.
7-inch LCD touch screen,simple operation
Mobile APP achieve remote control
IP67 Superior waterproof performance
Self calibration once power on.
Automatic counting function

Applications:

Schools and sports event
Meetings and VIP Security
Outdoors security protect
All the place that need the high sensitivity and portable metal detector

Technical Parameters

Operating temperature:-40℃ to +85℃
Relative Humidity:99%,non-condensing
IP Grade:IP67
External Dimension:2250*850*500mm
Passage Dimension:2051*710*500mm
Fold Demension:889*606*484mm
Packing Dimension:1000*700*540mm
Net Weight:33kg
Gross weight:40kg

TECHNICAL STANDARD
