Features

Features

Automatic digital line scan camera, with high-resolution and clarity of the image.

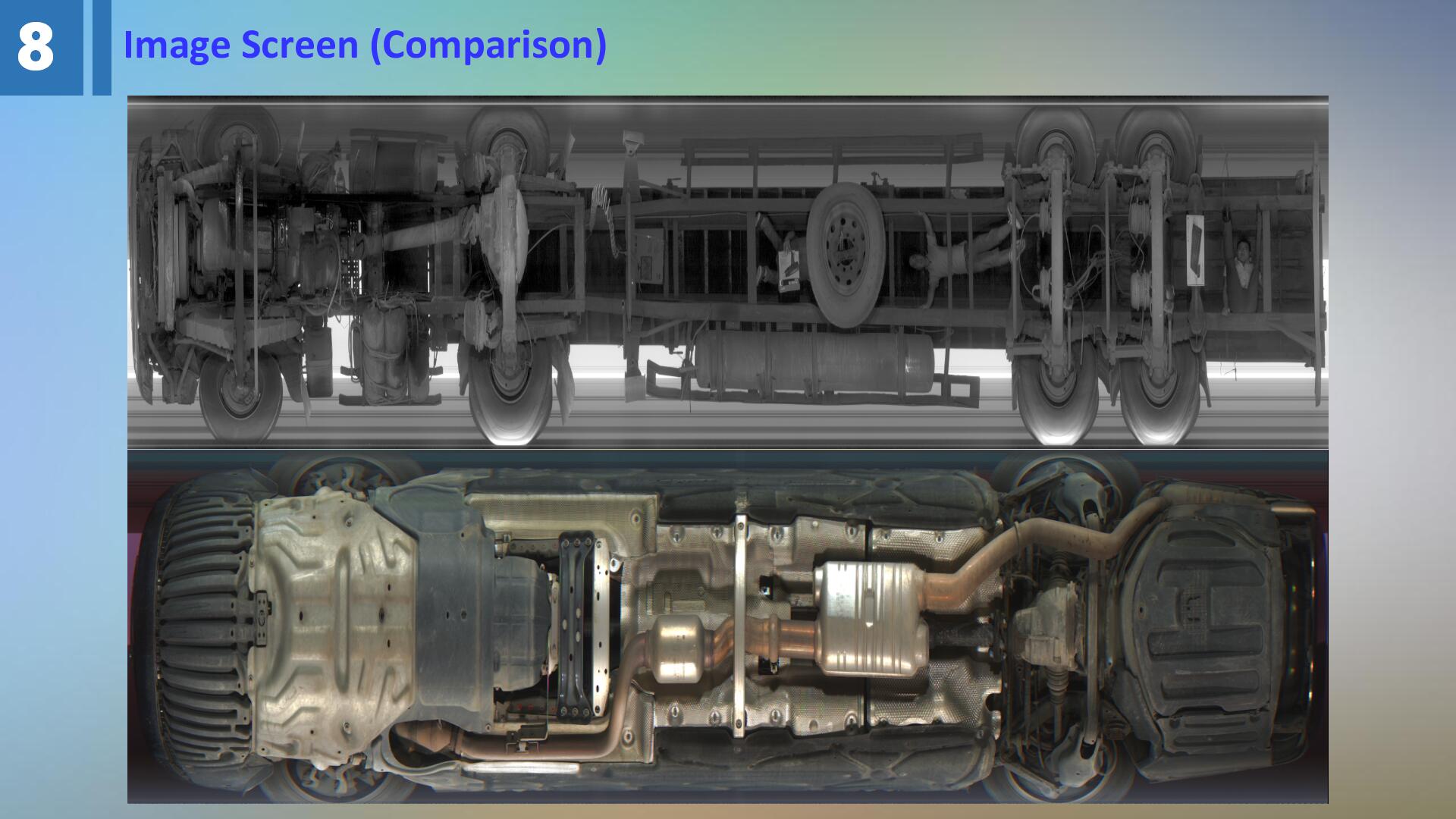

The complete image of under vehicle scanning, without any omissions, and the image is clear, complete, no distortion, can be clearly observed that the object is not less than 2mm in diameter.
Preparation of inspection processes to meet a variety of on-site needs.
Multiple scene image monitoring, recording function.
Multi-language user interface design.
Strong scalability to easily achieve a variety of system linkage control.
ALPR(Automatic Licence Plate Recognition) (Optional)
Multiple devices networked control functions(Optional)

General Specifications

Technical parameters

Embedded screening parts:
Camera: Sensor: line scan CCD
Resolution: 5000*2048 pixels
Power Supply: 24VDC, 3A
Illumination: LED,

Power Supply: 24VDC,150W
Size: 1200mm x 350mm
Storaging Temperature Range -25 degree to +70 degree

Controller:
Input: 2 channels induction coil
Output: 1 Channel switch type 12VDC
Communication port: RS485, Ethernet(Optional)
Operating Temperature: -10ºC to 55ºC

System host

System host

Brand: Grantech (UFO6377H-SP1-953)
CPU: Intel® Core(TM) 2 Duo CPU
P8600@2.4GHz or higher
Memory:2G( optional 4G)
Graphics:Inter(R) Gen 5.0 Integrated Graphics Engine
Hard Disk:SATA2 Hard Disk 500G
Dual LAN (At least one Intel Gigabit)
USB2.0 (Up to 4 pieces)
Monitor: 22inch LCD, resolution up to 1920*1080
Scene Video Record: 4 channel, Compression algorithm of scene video: H264
