7 Inch Screen Multi Zone Metal Detector , Walkthrough Scanner High
Sensitivity
Product Point :
1................................33/36 , 6/12/18 zones
2................................7.0 inch screen
3................................Each zone has 999 sensitivity
level
4................................Sound & LED alarm
5................................Alarm volume range from level 0 to
9
6................................Alarm tones Change from 1 to 9
7................................Password Protection
Parameters :
| Detecting zone: | 33/36 , 6/12/18 zones |
| Display way: | 7.0 inch screen |
| Sensitivity: | 0-999 adjustable |
| Detecting speed: | 100 passenger/ min |
| Working temperature: | -20℃--+50℃ |
| Alarm way : | Sound & LED alarm |
| Gross weight: | 67KG |
| Warranty: | 2 years |
| Standard External size: | 2200mm(H)X800mm(W)X580mm(D) |
| Standard Internal size: | 2010mm(H)X700mm(W)X500mm(D) |
| Package size for door panels: | 2260*650*260mm *1ctn |
| Package size for control unit: | 780*390*250 mm*1ctn |
Specification:
>>33 detecting zones, Simultaneous alarm from multi- zones;
>>Sensitivity adjustable: Each zone has 999 sensitivity level 0-999 adjustable

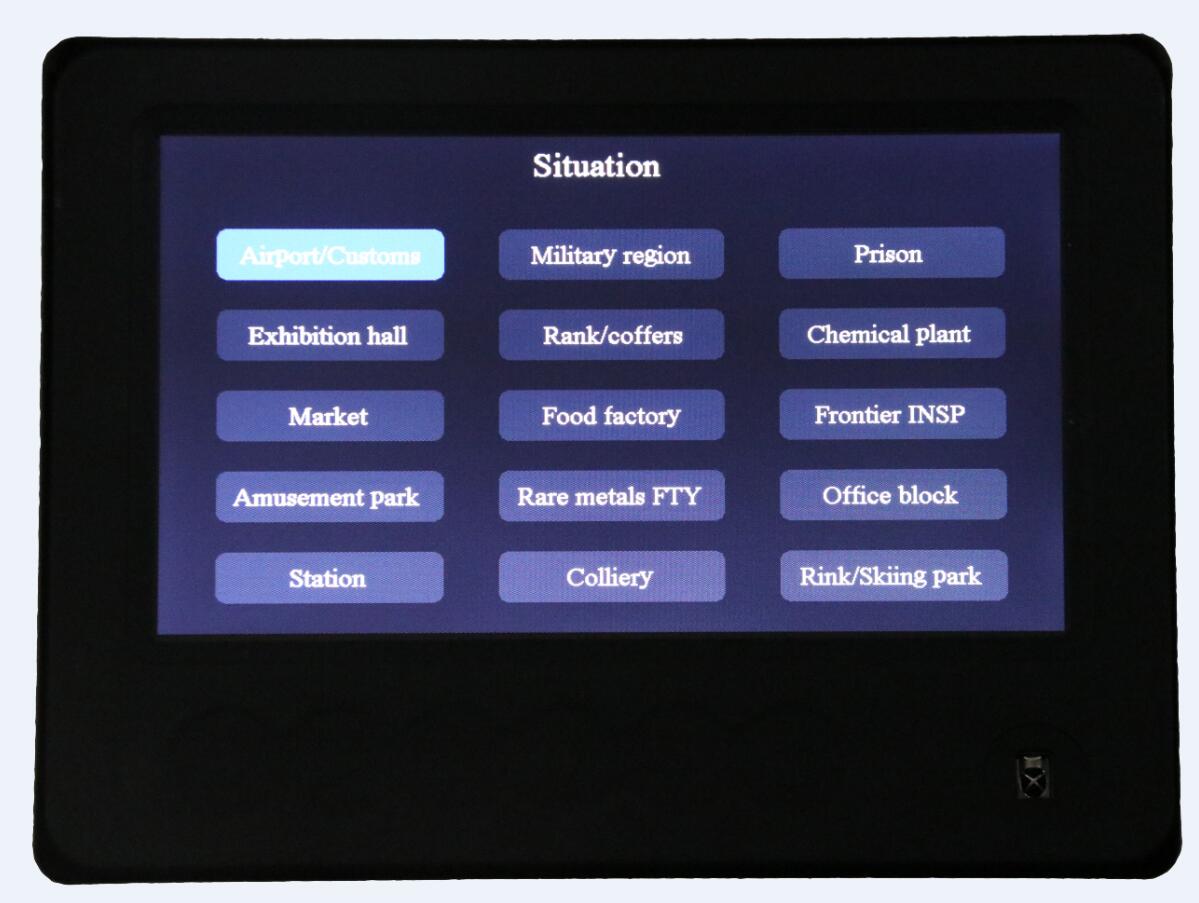

>>7 inch color LCD screen
>>Infrared remote control
>>Using high density fireproof material
>>Automatically count passengers and alarm times
>>PASS and ALARM count: up to 99999
>>High sensitivity: Ferrous/ non-ferrous /Alloy can be
detected
>>15 preset programs for security applications
>>Alarm volume range from level 0 to 9
>>Alarm tones: Change from 1 to 9
>>Anti-interference function, using advanced interactive transmitting and receiving to avoid
interference.
>>100 frequencies for option. To work with neighbouring gates
at 50cm
>>Sound & LED alarm: Two Sides LED indicator easily show where the metal is.
>>Detecting speed: up to 100 passenger/ min.
>>Password protection, only the authorized person can operate.
>>Easy assembly: designed with only 2 pieces cables and 8
screws, Simply-to-follow instruction.
>>Modularization design,easy for maintenance and replacement.
>>Harmless to human body: is harmless with heart pacemaker,
pregnant women, magnetic floppy, recording tapes,
>>Sensitivity Test piece: One yuan Coin, omnidirectional
detection
>>Network support
>>Can be customized 36 zones (6/12/18 zones)
>>4-8 hours backup battery (Option)
Applications:
- Commercial buildings;
- Factories(to find needle in clothing, shoes, bags)
- Courthouses;
- Embassies;
- Government buildings;
- Military installations;
- Prisons;
- Hotels;
- Schools;
- Convention centers;
- Security checkpoints.
