X-ray parcel scanner Dual Energy X ray Inspection System with high
definition of scanned images SF6550
1,Company information
ABOUT US
Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer,
specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection
and relative security services.
OUR BRIEF
We always adhere to customer-centric, the principles of honesty and
trustworthiness, is committed to efforts to improve and continuous
innovate its own responsibility .
OUR TECHNOLOGY
We owns all of the intellectual property rights (IPR) to its core
technologies ,and have a experience engineer team with senior x-ray
detection exports, signal and imagine processing specialist ,
excellent technical support and maintance engineers.
OUR SERVICES
We strictly in accordance with the ISO9001 quality standard
requirements from production research , manufacture, marketing to
after services, established a complete quality management and
assurance system . Also we take effective marketing management
protection measures to control the products qulity ,working
efficiency and service attitudes ,to ensure all our clients have
our best quality products and best services.
2,Specification
Tunnel Size : 650 (W) ×500 (H) mm
Power Requirement: 220V AC (±10%) 50±3Hz
Power consumption: 1.0KW (Max)
Noise level: <58dB
Conveyor Speed: 0.22m/s
Conveyor Max Load: 170 kg
Wire Resolution: 40AWG
Spatial Resolution: 1.0mm Horizontal and Vertical
Steel Penetration: 40mm
Single inspection dosage: < 1.2μGy
Leakage radiation: <0.1µGy/h
Film Safety: Guarantee ISO1600 Film
X-Ray Generator
Tube Current:0.4~1.2mA(adjustable)
Anode Voltage:100~160KV(adjustable)
Cooling: Sealed oil bath with forced air
Duty Cycle: Rated for 100%Duty Cycle
Beam Direction: Upward
Beam Angle: 80°
Detector: L-shaped Array
Environment Specifications:
Operating temperature/humidity: 0℃ ~ 45℃/20% ~ 95% (Non-condensing)
Storage temperature/humidity: -20℃ ~ 60℃/20% ~ 95% (Non-condensing)
Image Performance System:
19’’ High Resolution LCD Monitor
Display Resolution: 1280*1024;24 bit/pixel Color
Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
Image storage: 100,000 pictures in real time (can be customized)
Zoom: 64 Times Enlarge, Whole screen continuous observation
Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color,
mixture in green color
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in
image to make the area that is easy to penetrate appear more
clearly
Low penetration display: Increase the contrast of dark area in
image to make the area that is difficult to penetrate appear more
clearly.
Brightening/dimming: Increase/Decrease brightness of image
Image recurrence: Display the previous twenty images and process
any one of them
Image restoration: Restore image to initial status
Assist to detect drug and explosive powder
Special features:
Network interface: Capable of connecting to LAN, and support
multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding
the error
One-key shutdown control: Just rotate the key to shut down the
machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction
for prompt maintenance
3,Application
Exhibition center, Electronic Factory, Bank, Prison, Government
office, Hotel etc

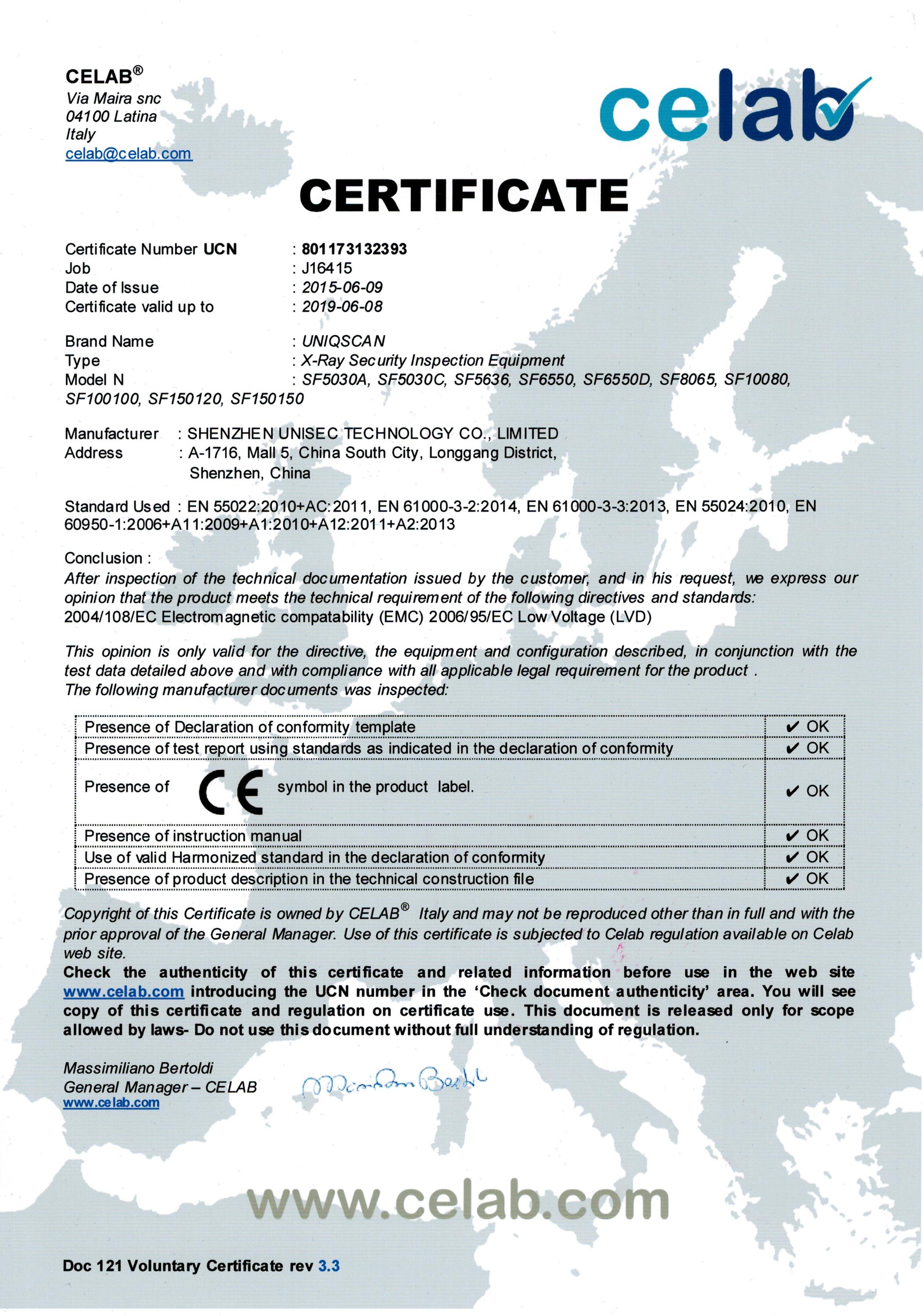

4,Certificate
5,Scanned images
