Dual View Baggage Screening Security Scanners / Xray Baggage Inspection System

    Buy cheap Dual View Baggage Screening Security Scanners / Xray Baggage Inspection System from wholesalers

    Buy cheap Dual View Baggage Screening Security Scanners / Xray Baggage Inspection System from wholesalers
    • Buy cheap Dual View Baggage Screening Security Scanners / Xray Baggage Inspection System from wholesalers

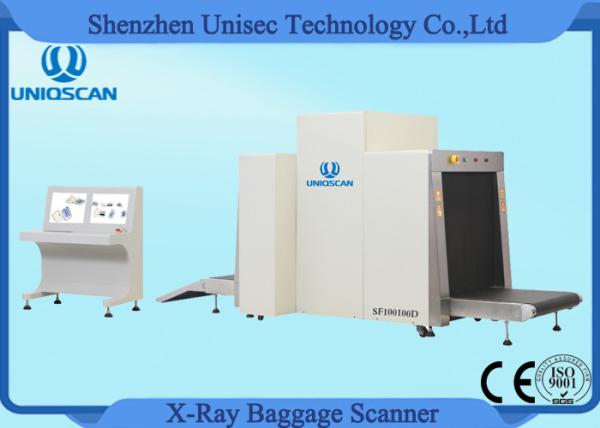

    Dual View Baggage Screening Security Scanners / Xray Baggage Inspection System

    Ask Lasest Price
    Brand Name : UNIQSCAN
    Model Number : SF100100D
    Certification : CE , ISO
    Price : USD
    Payment Terms : T/T, Western Union
    Supply Ability : 500 UNITS FOR ONE MONTH
    Delivery Time : IN ONE WEEK
    • Product Details
    • Company Profile

    Dual View Baggage Screening Security Scanners / Xray Baggage Inspection System

    Dual View Baggage Screening Security Scanners Xray Baggage Inspection System

    General Specification:

    Tunnel Size :1000 (W) ×1000 (H) mm
    Power Requirement:220V AC (±10%) 50±3Hz
    Power consumption:1.0KW (Max)
    Noise level:<55dB
    Conveyor Speed:0.22m/s
    Conveyor Max Load:300 kg
    Wire Resolution:38AWG
    Spatial Resolution:1.0mm Horizontal and Vertical
    Steel Penetration:34mm
    Single inspection dosage:< 1.2μGy
    Leakage radiation:<0.1µGy/h
    Film Safety:Guarantee ISO1600 Film


    X-Ray Generator Specifications:

    Tube Current:0.7~1.2mA
    Anode Voltage:140~160KV
    Cooling:Sealed oil bath with forced air
    Duty Cycle:Rated for 100%Duty Cycle
    Beam Direction:Downward and Sideward
    Beam Angle:80°
    Detector:L-shaped Array * 2


    Environment Specifications:

    Operating temperature/humidity:0ºC ~ 45ºC/20% ~ 95% (Non-condensing)
    Storage temperature/humidity:-20ºC ~ 60ºC/20% ~ 95% (Non-condensing)


    Computer Specification:

    Processor:I3-4340 (Dual core four thread) 3.6 GHZ 22nm 54W
    Memory:4GDDR3 Loptop Memory
    Hard Disk :1T


    Image Display:

    Display:19'' High Resolution LCD Monitor *2
    Display Resolution:1280*1024;24 bit/pixel Color
    Contrast Sensitivity:24 Visible Levels, 4096 Gray Level
    Image storage:200,000 pictures in real time (can be customized)
    Zoom:64 Times Enlarge, Whole screen continuous observation

    Application:

    End userRecommend X Ray Baggage Scanner model NO.
    Airports, Transport terminalsSF6040; SF6550; SF10080; SF100100
    FactoriesSF5030; SF5636; SF6040; SF6550
    Embassies, BuildingsSF5030; SF5636; SF6040; SF6550
    Military installationsSF5030; SF6040; SF6550; SF8065; SF100100
    Prisons, Hotels, Schools,SF5030; SF5636; SF6040; SF6550; SF10080
    Security checkpoints,SF5030; SF6040; SF6550; SF8065; SF10080
    Dual View:SF6040D;SF6550D;SF8065D;SF10080D;SF100100D

    UNIQSCAN SF10010D

    UNIQSCAN Projects :
