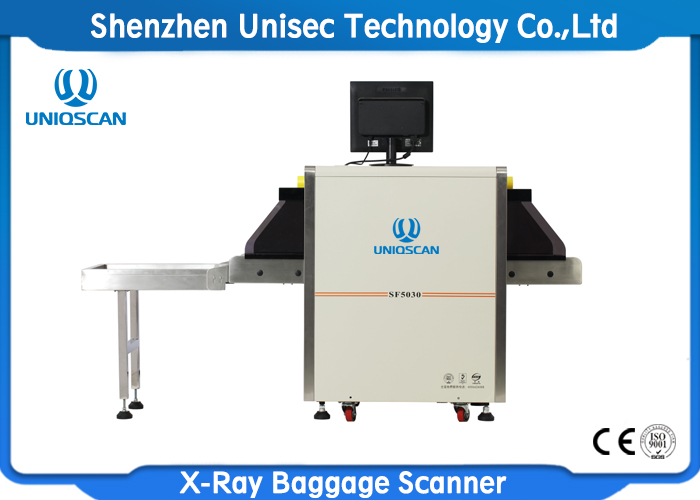

High Resolution L-Shape X Ray Luggage Scanner For Cargo Inspection
Model: SF5030
General Specifications
Tunnel Size : 500 (W) ×300 (H) mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 100 kg
Single inspection dosage: <1.32μGy
Leakage radiation: <0.06µGy/h
Wire Resolution: 40AWG
Steel Penetration: 10mm
Film Safety: For ISO 1600
X-RAY GENERATOR
Orientation: Upward
Tube Current: 0.4-1.25mA(adjustable)
Anode Voltage: 80KV(adjustable)
Angle: 60°
Generator cooling/working periods:
Sealed oil bath with forced air/100％
OPERATING ENVIRONMENT
Storage Temperature: -20oC to 60oC
Operating Temperature: 0°C to 45°C
Relative Humidity:
20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise<55DB
X-RAY Sensor: L-shaped array detector, 24bit
Image Performance System:
Display: High-resolution 19 inch color LCD display
Color quality: 24-Bit real colors based on materials
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in
image to make the area that is easy to penetrate appear more
clearly
Low penetration display: Increase the contrast of dark area in
image to make the area that is difficult to penetrate appear more
clearly.
Magnifier: Partial magnifying function
Brightening/dimming: Increase/Decrease brightness of image
Image recurrence: Display the previous twenty images and process
any one of them
Image restoration: Restore image to initial status
Image storage: Real-time store any image and process it in
operation status
Multi-energy: High/low energy: Switch from high energy to low
energy
Color material identification: Organic objects in orange, inorganic
objects in blue, mixture in green
Assist to detect drug and explosive powder
Special features:
Network interface: Capable of connecting to LAN, and support
multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding
the error
One-key shutdown control: Just rotate the key to shut down the
machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction
for prompt maintenance
Packaging & Shipping
Neutral Packing:
Q'TY: 1 PCS/Wooden Case
N.W.: 310 KGS
G.W.: 390 KGS
MEAS.: 1666(L)*823(W)*1196(H)
Wood Case Size:1880(L) X 900(W) X 1420(H) mm=2.265CBM
Our Services
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to instal the
machine, training how to use the machine.
* Sample testing support . * Engineers available to service
machinery overseas.
* View our Factory.
Company profile
Shenzhen Unisec Technology Co., Ltd is a professional security
scanner equipment manufacturer, specialized the development and
research in the x-ray imagine tehnology, metal detection
technology, explosive detection, liquid detection and relative
security services.
We owns all of the intellectual property rights(IPR) to its core
technologies,and have a experience engineer,sales and service team.
Products widely used in airport, railway station, bus station,
electronic factory, exhibition, government office, jail, court
house...etc. Wins a good reputation from end users from China and
overseas.
We strictly in accordance with the ISO9001 quality standard
requirements from production research, manufacture, marketing to
after services, established a complete quality management and
assurance system, to ensure all our clients have our best quality
products and best services.
