    High Resolution X Ray Baggage Scanner / X Ray Security Inspection Dual Energy

    Ask Lasest Price
    Brand Name : Uniqscan
    Model Number : SF100100
    Certification : CE ISO
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100sets per month
    Delivery Time : in one week
    • Product Details
    • Company Profile

    High Resolution X Ray Baggage Scanner / X Ray Security Inspection Dual Energy

    High resolution x-ray security inspection,dual energy x-ray luggage scanner 8065 with CE ISO certificate



    General specification:


    High resolution x-ray security inspection,dual energy x-ray luggage scanner 8065 with CE ISO certificated


    General Specifications
    Tunnel Size :800 (W) ×650 (H) mm
    Conveyor Speed: 0.22m/s
    Conveyor Max Load: 100 kg
    Single inspection dosage: < 1.32μGy
    Wire Resolution: 40AWG
    Steel Penetration: 10mm
    Film Safety: For ISO 1600
    Conveyor rolls in both two directions
    X-RAY GENERATOR
    Orientation: Upward
    Tube Current: 0.4~0.7mA(adjustable)
    Anode Voltage: 80KV(adjustable)
    Angle: 60°
    Generator cooling/working periods:
    Sealed oil bath with forced air/100%
    Conveyor rolls in both two directions
    OPERATING ENVIRONMENT
    Storage Temperature: -20oC to 60oC
    Operating Temperature: 0oC to 45oC
    Relative Humidity:
    20 to 95% non-condensing
    System Power: 220 VAC (±10%) 50±3HZ
    Power wastage: 1.0 KW (Max)
    Noise<65DB
    X-RAY Sensor:
    L-shaped array detector

    24bit
    Single energy
    Image Performance System:
    Display: High-resolution 19 inch color LCD display

    Company Information

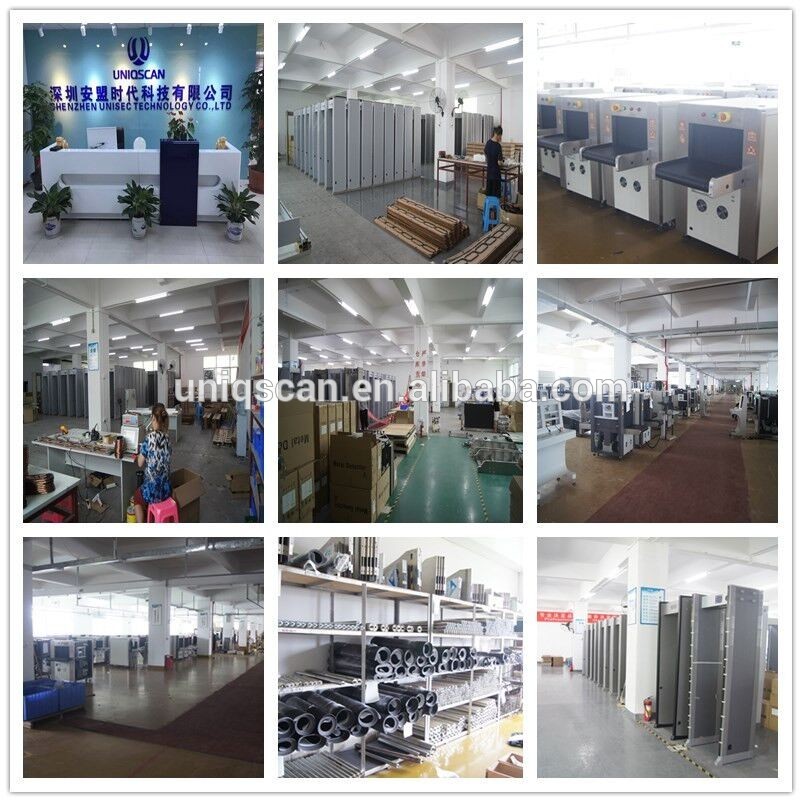

    Factory pic.jpg

    Xray parts.jpg




    Product Feature


    Certifications

    06

    Packaging & Shipping

    X-ray wooden packing.jpg
