UVSS/UVIS fixed under vehicle inspection system CCD line scan

Parameters:

1. Store or load time: <1 second;

2. Vehicle Image local magnification: > 2 times;

3. Vehicle Image scaling: 16 times;

4. Vehicle image display mode: large format transverse;

5. Vehicle image storage format: BMP or JPEG;

6. System interface language: English (can be customized);

7. Display resolution: 1920 * 1080P

8. Communication interface: RS232/RS422;

9. Scene image display: ≥1 channel

10. Speed identification: when the vehicle pass the scanner and stops suddenly, then restart, the device can identify automatically, system will display the complete vehicle image

11. Scan mode: linear scanning, the ground sensor coil trigger;

12. Vehicle speed: 1-60km/h, suggest speed : less than 30km/h

13. View angle: 175 degrees

14. Image Longitudinal resolution: 2048 pixels CCD;

15. Scanner connecting cable: 100 meters (can be customized)

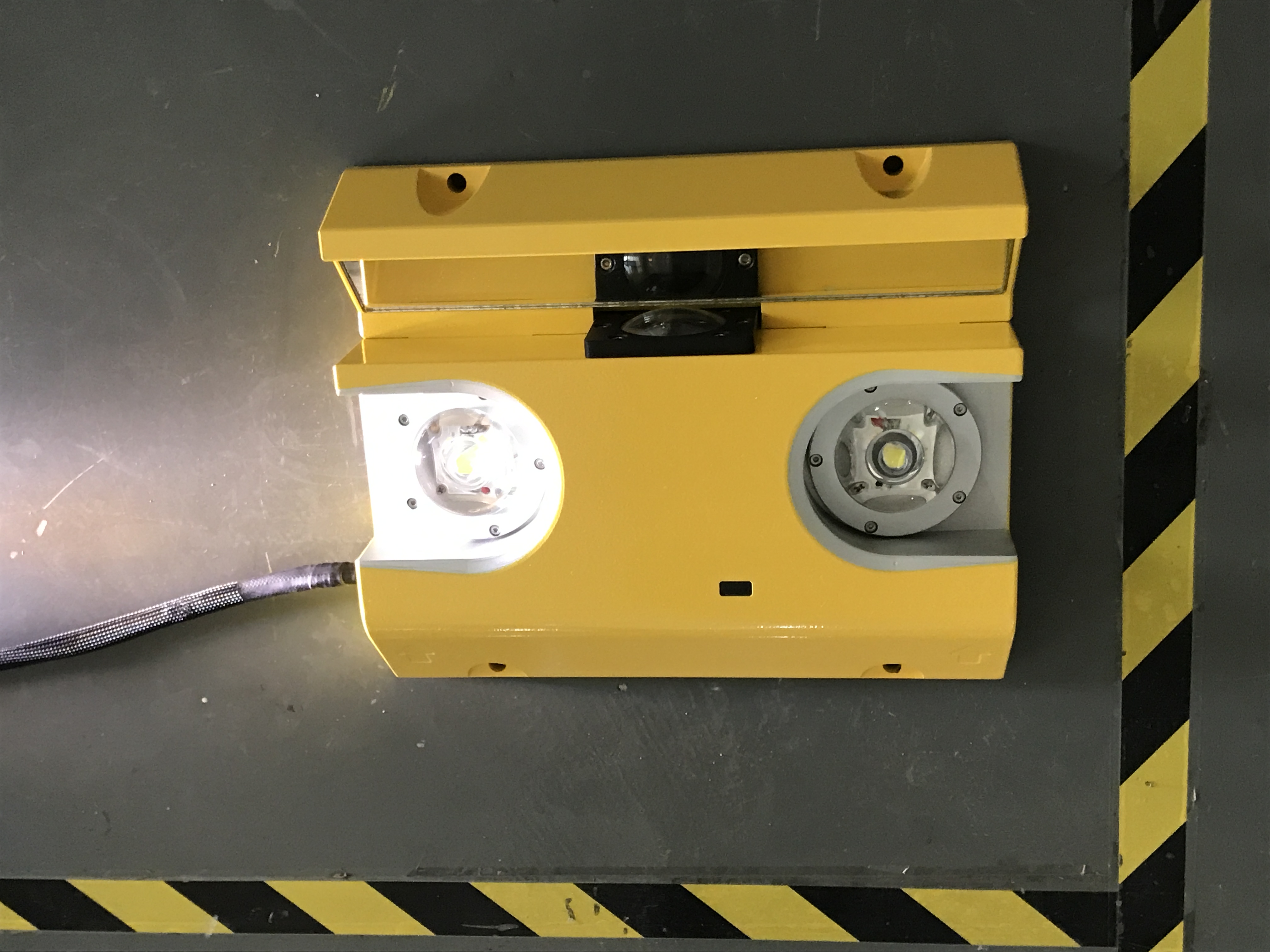

16. Lighting components : Four single sealed LED surface light source ;

Life : 100,000h

17. Under Vehicle image scanner with a unique open-wide field scan design;

18. Working voltage: DC24V

19. Power Supply:AC110V-240V/50-60Hz

20. Structure design:single sealed design；

21. Loading weight: 30 Tons

22. Scanner size: 1200*350*210mm

23. Weight: 180kg

24. Environment temperature: -40 degrees - +70 degrees

25. License plate recognition

Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.

OUR BRIEF

We always adhere to customer-centric, the principles of honesty and trustworthiness, is committed to efforts to improve and continuous innovate its own responsibility .

OUR TECHNOLOGY
We owns all of the intellectual property rights (IPR) to its core technologies ,and have a experience engineer team with senior x-ray detection exports, signal and imagine processing specialist , excellent technical support and maintance engineers.

OUR SERVICES
We strictly in accordance with the ISO9001 quality standard requirements from production research , manufacture, marketing to after services, established a complete quality management and assurance system . Also we take effective marketing management protection measures to control the products qulity ,working efficiency and service attitudes ,to ensure all our clients have our best quality products and best services.
