under vehicle surveillance system UV300-M portable with high sensitivity for hotel and government security check.etc.

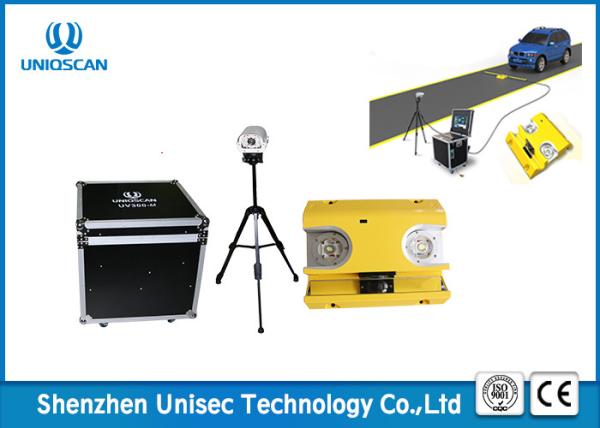

Under Vehicle Surveillance System mobile type UV300-M

Software:

1,using black and white Array CCD scanning technology Dynamic imaging；

2,Scanning Image resolution: ≥ 2048

3,Store or load time: <1 second;

4,Vehicle image display mode: large format transverse;

5,System interface language: English (can be customized);

6,Display resolution: adapt to a variety of display resolution;

7,Vehicle image data transfer interface: NetworkRJ45

8,Scene image display: ≥1 channel

9,Dedicated image processing functions

10,License plate recognition (need customer provide the SDK LPR software of the exported country, we can integrate it to the UVSS without extra cost )

Computer:

1,Display: 22 inch LCD Screen

2,CPU: INTEL Quad-Core Processor

3,Motherboard : dedicated motherboard

4,Memory : DDR3 , more than 2GB

5,Hard disk : 500G high-speed hard disk

6,Working voltage : AC220V 50/60Hz

7,Data transmission cable length : 10m (standard)

Vehicle image system, control equipment and environmental adaptability:

1,Scan mode: automatic , non- external trigger scanning;

2,The maximum scan rate:18kHz；

3,Vehicle speed:≤30km/h；Loading weight: 30 Tons

4,View angle:180 degrees

5,Scanner connecting cable: 10 meters (can be customized more than 10m)

6,Lighting components : Two single sealed LED surface light source ; Life : 50,000h

7,Under Vehicle image scanner with a unique open-wide field scan design;

8,Working voltage: DC24V

9,Power Supply:AC220V/50-60Hz

10,Structure design:single sealed design；

11,Environment temperature: -20 degrees - +55 degrees

12,Appearance: Aluminum copper alloy composite material
