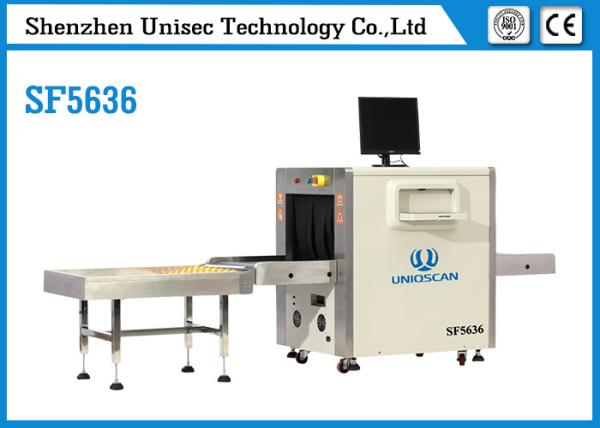

Security Baggage Scanner Upward Orientation Airport Baggage Scanner
SF5636
X-RAY Sensor.................................. L-shaped array detector, 24bit
General Specifications:
Tunnel Size.........................................560 (W) ×360
(H) mm
Wire Resolution..................................40AWG
Steel Penetration................................40mm
Conveyor Max Load............................150 kg
Leakage radiation.............................. <0.06µGy/h
Single inspection dosage.................... <1.01μGy
Conveyor Speed................................. 0.22m/s
Film Safety.......................................... For ISO 1600
X-RAY GENERATOR:
Orientation.......................................... Upward
Tube
Current.......................................0.4-1.25mA(adjustable)
Anode
Voltage.....................................80-160KV(adjustable)
Angle...................................................80°
Generator cooling/working periods..... Sealed oil bath with forced
air/100％
OPERATING ENVIRONMENT
Storage Temperature......................... -20oC to 60oC
Operating Temperature...................... 0oC to 45oC
Relative Humidity.................................20 to 95%
non-condensing
System Power..................................... 220 VAC (±10%)
50±3HZ
Power wastage................................... 1.0 KW (Max)
Noise...................................................55DB
Image Performance System:
- Display: High-resolution 19 inch color LCD display
- Color quality: 24-Bit real colors based on materials
- Edge enhancement: Object contour edge is more distinct
- Super image enhancement: Image detail is more distinct
- High penetration display: Increase the contrast of bright area in
image to make the area that is easy to penetrate appear more
clearly
- Low penetration display: Increase the contrast of dark area in
image to make the area that is difficult to penetrate appear more
clearly.
- Magnifier: Partial magnifying function
- Brightening/dimming: Increase/Decrease brightness of image
- Image recurrence: Display the previous twenty images and process
any one of them
- Image restoration: Restore image to initial status
- Image storage: Real-time store any image and process it in
operation status
Multi-energy: High/low energy: Switch from high energy to low energy
Color material identification: Organic objects in orange, inorganic objects in blue, mixture in
green
Assist to detect drug and explosive powder
Special features:
- Network interface: Capable of connecting to LAN, and support
multi-terminal check for baggage at same time,
- Safety ray: Ray is transmitted under automatic control, avoiding
the error,
- One-key shutdown control: Just rotate the key to shut down the
machine; it is safety, easy and convenient
- Eagle eye: Capable of expediently observing the magnifying area
- Self-diagnosis function: Give message automatically if malfunction
for prompt maintenance
- One-to-one exclusive service
- Online diagnosis service for after-sales service
- 24 months warranty for providing free spare parts
- Free training in factory for your engineer
- Accept arranging engineer go abroad for trainning should be paid
- Tender protection with authorization certificate
Applications:
- Commercial buildings
- Factories(to find needle in clothing, shoes, bags)
- Courthouses
- Embassies
- Government buildings
- Military installations
- Prisons
- Hotels
- Schools
- Convention centers
- Security checkpoints
