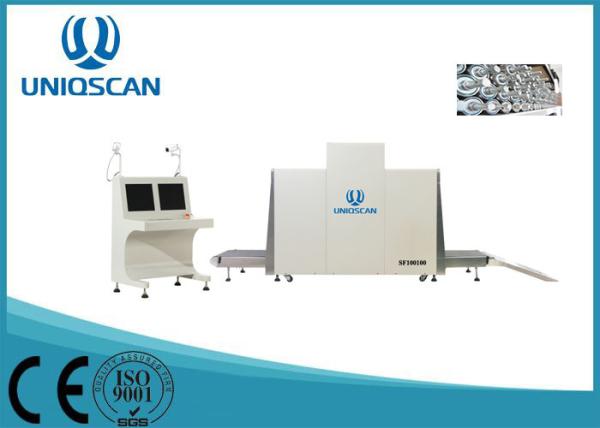

Luggage Airport Security Baggage Scanners , 24 Bit Color X Ray Baggage Inspection System

Technical Specifications

Tunnel Size : 1000(W)×1000(H)mm

Power Requirement: 220V AC (±10%) 50±3Hz

Power consumption: 1.0KW (Max)

Noise level: <58dB

Conveyor Speed: 0.22m/s

X-Ray Generator Specifications

Dual view: two X-ray generators

Voltage: 150-200KV (Adjustable)

Tube Current: 1.0 ~1.5mA (Adjustable)

Cooling: Sealed oil bath with forced air

Image Display

2* 19’’ High Resolution LCD Monitor

Display Resolution: 1280*1024;24 bit/pixel Color, dual view image

Contrast Sensitivity: 24 Visible Levels,4096 Gray Level

Image storage: 100,000 pictures in real time (can be customized)

Zoom: 64 Times Enlarge, Whole screen continuous observation

Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color

Threat image projection (TIP), assist to detect drug and explosive powder

Edge enhancement: Object contour edge is more distinct

Special features:

Japan HAMMATSU detecting sensor, INTERRoll electronic Roller

Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time

Safety ray: Ray is transmitted under automatic control, avoiding the error

One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient

Eagle eye: Capable of expediently observing the magnifying area

Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.

OUR BRIEF

We always adhere to customer-centric, the principles of honesty and trustworthiness, is committed to efforts to improve and continuous innovate its own responsibility .

OUR TECHNOLOGY
We owns all of the intellectual property rights (IPR) to its core technologies ,and have a experience engineer team with senior x-ray detection exports, signal and imagine processing specialist , excellent technical support and maintance engineers.

OUR SERVICES
We strictly in accordance with the ISO9001 quality standard requirements from production research , manufacture, marketing to after services, established a complete quality management and assurance system . Also we take effective marketing management protection measures to control the products qulity ,working efficiency and service attitudes ,to ensure all our clients have our best quality products and best services.
