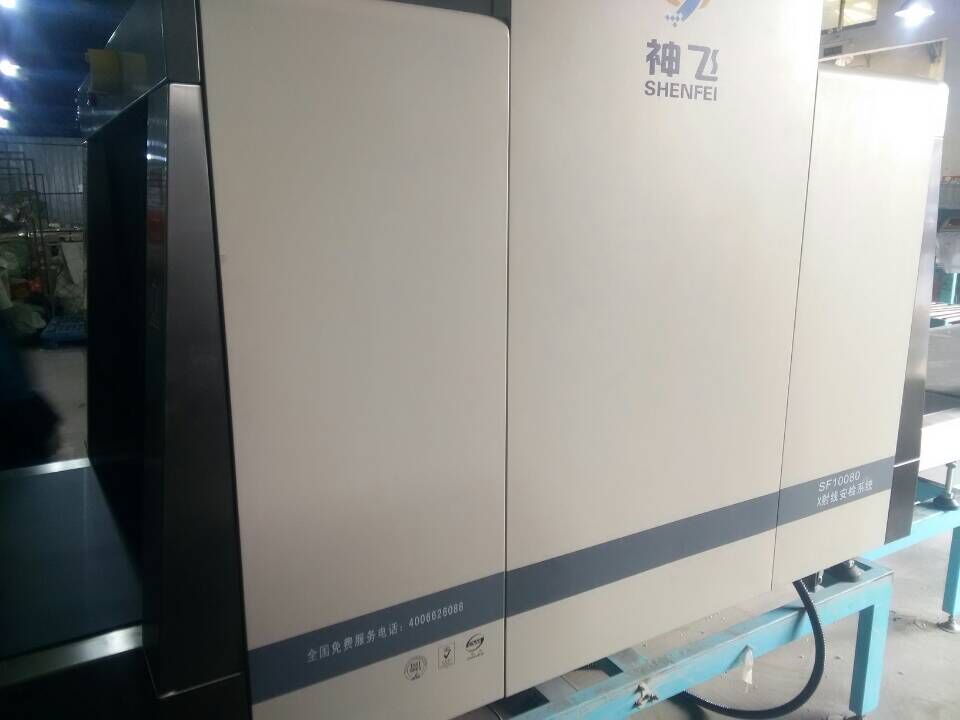

Security Express Parcel X Ray Luggage Scanner For Logistics Company and Custom

General Specifications
Tunnel Size : 1000 (W) *800 (H) mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 230 kg
Single inspection dosage: < 1.5μGy
Leakage radiation: <0.2μGy/h
Wire Resolution: 40AWG
Steel Penetration: 38mm
Film Safety: For ISO 1600

X-RAY GENERATOR
Orientation: Downward
Tube Current:0.4~1.2mA(adjustable)
Anode Voltage:100~160KV(adjustable)
Angle: 80°
Generator cooling/working periods: Sealed oil bath with forced air/100％

OPERATING ENVIRONMENT
Storage Temperature: -20oC to 60oC
Operating Temperature: 0oC to 45oC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise<58DB
X-RAY Sensor:
L-shaped array detector 24bit

Image Performance System:
Display: High-resolution 19 inch color LCD display
Color quality: 24-Bit real colors based on materials
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct

Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.

OUR BRIEF

We always adhere to customer-centric, the principles of honesty and trustworthiness, is committed to efforts to improve and continuous innovate its own responsibility .

OUR TECHNOLOGY
We owns all of the intellectual property rights (IPR) to its core technologies ,and have a experience engineer team with senior x-ray detection exports, signal and imagine processing specialist , excellent technical support and maintance engineers.

OUR SERVICES
We strictly in accordance with the ISO9001 quality standard requirements from production research , manufacture, marketing to after services, established a complete quality management and assurance system . Also we take effective marketing management protection measures to control the products qulity ,working efficiency and service attitudes ,to ensure all our clients have our best quality products and best services.
