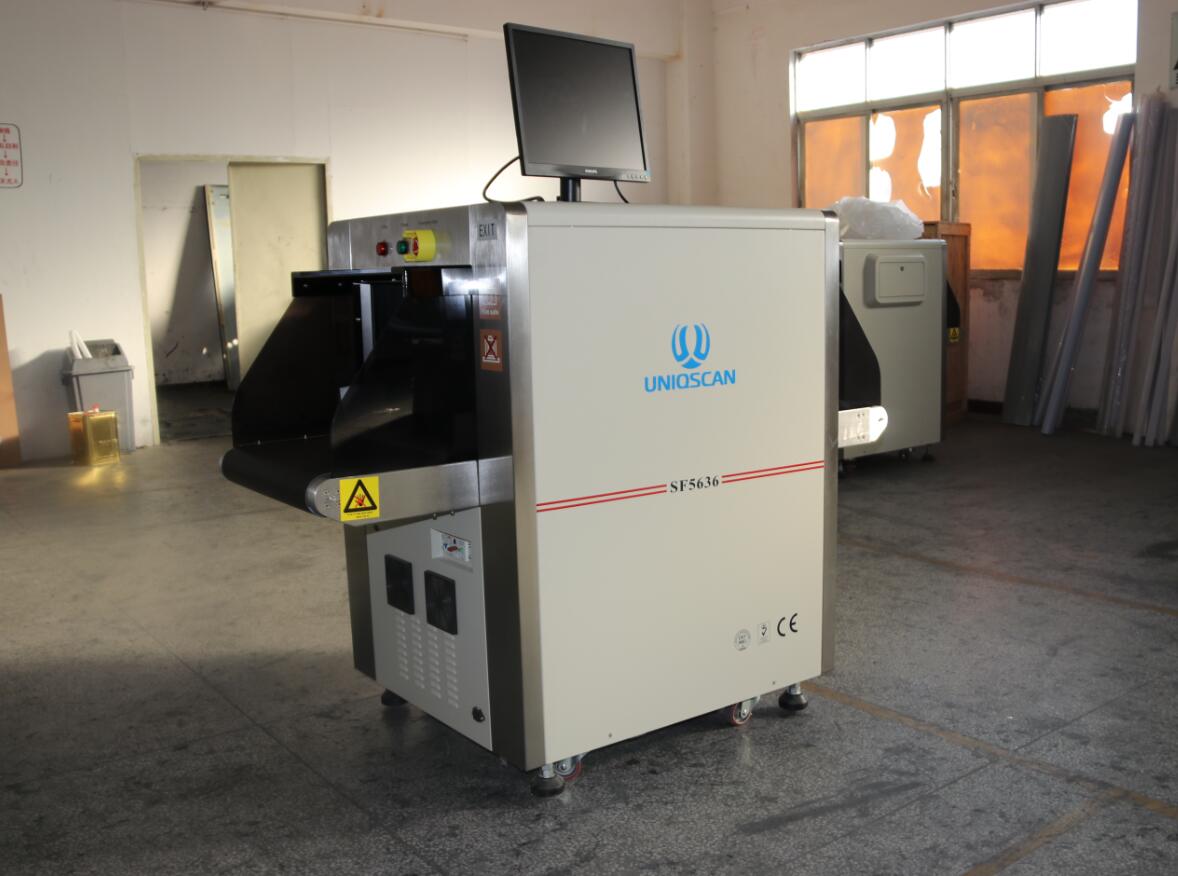

560*360 mm baggage x ray machines , 150 KG 0.22m/s security x-ray machine

General Specifications
1. Tunnel Size : 560 (W) ×360 (H) mm
2. Conveyor Speed: 0.22m/s
3. Conveyor Max Load: 150 kg
4. Single inspection dosage: <1.01μGy
5. Leakage radiation: <0.06µGy/h
6. Wire Resolution: 40AWG
7. Steel Penetration: 40mm
8. Film Safety: For ISO 1600

X-RAY GENERATOR
1. Orientation: Upward
2. Tube Current: 0.4-1.25mA(adjustable)
3. Anode Voltage: 80-160KV(adjustable)
4. Angle: 80°
5. Generator cooling/working periods:Sealed oil bath with forced air/100%

OPERATING ENVIRONMENT
1. Storage Temperature: -20oC to 60oC
2. Operating Temperature: 0oC to 45oC
3. Relative Humidity:20 to 95% non-condensing
4. System Power: 220 VAC (±10%) 50±3HZ
5. Power wastage: 1.0 KW (Max)
6. Noise:<55DB

X-RAY Sensor: L-shaped array detector, 24bit

Image Performance System:
1. Display: High-resolution 19 inch color LCD display
2. Color quality: 24-Bit real colors based on materials
3. Edge enhancement: Object contour edge is more distinct
4. Super image enhancement: Image detail is more distinct
5. High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
6. Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
7. Magnifier: Partial magnifying function
8. Brightening/dimming: Increase/Decrease brightness of image
9. Image recurrence: Display the previous twenty images and process any one of them
10. Image restoration: Restore image to initial status
11. Image storage: Real-time store any image and process it in operation status

Multi-energy: High/low energy: Switch from high energy to low energy

Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green
Assist to detect drug and explosive powder

Special features:
1. Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
2. Safety ray: Ray is transmitted under automatic control, avoiding the error
3. One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
4. Eagle eye: Capable of expediently observing the magnifying area
5. Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
