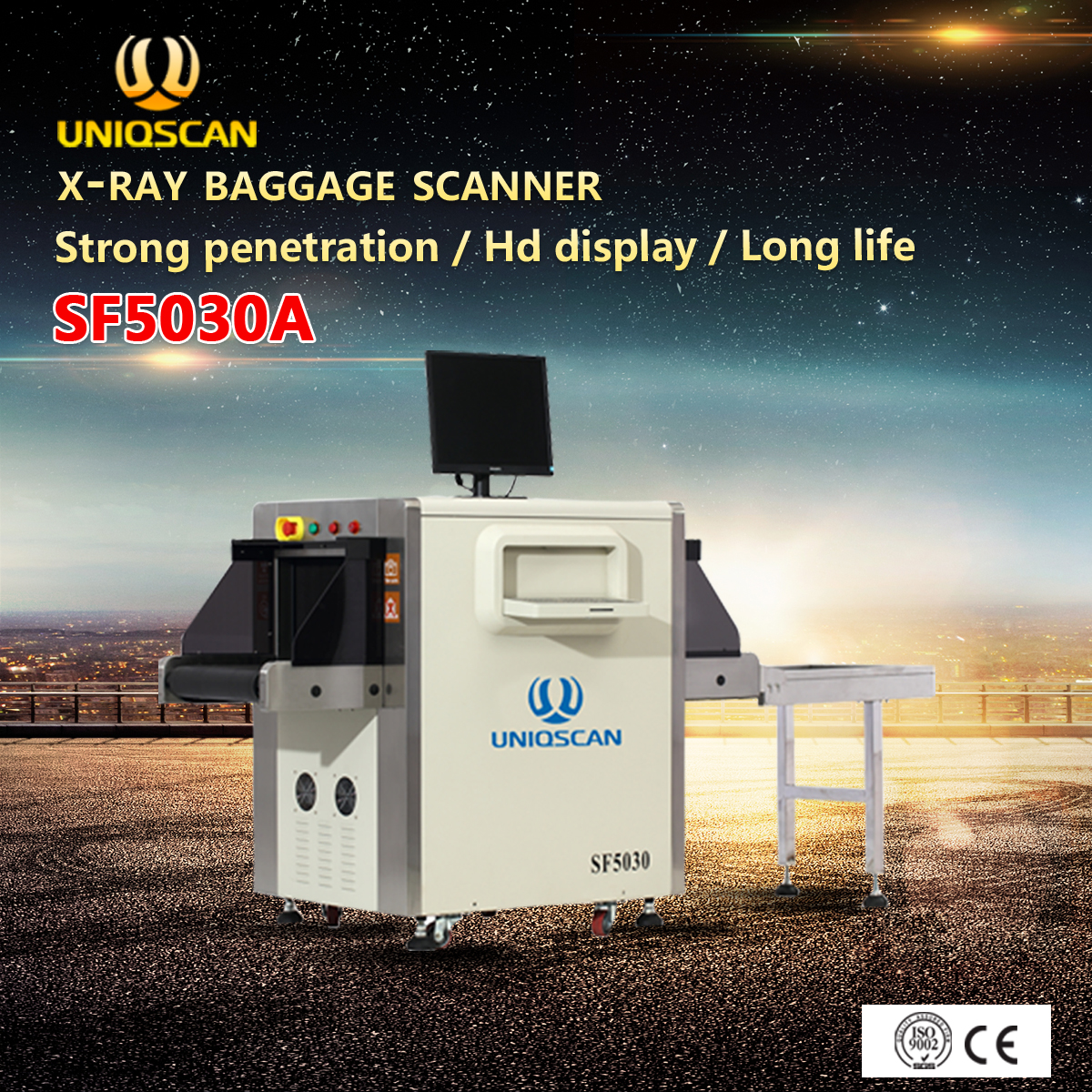

High steel penetration x-ray baggage scanner cargo scanner scanning machine

Model: SF5030

General Specifications

Tunnel Size : 500 (W) ×300 (H) mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 100 kg

Single inspection dosage: < 1.32μGy

Wire Resolution: 40AWG

Steel Penetration: 40mm

Film Safety: For ISO 1600

X-RAY GENERATOR

Orientation: Upward

Tube Current:0.4~0.7mA(adjustable)

Anode Voltage:80KV(adjustable)

Angle: 60°

Generator cooling/working periods:

Sealed oil bath with forced air/100％

OPERATING ENVIRONMENT

Storage Temperature: -20oC to 60oC

Operating Temperature: 0oC to 45oC

Relative Humidity:

20 to 95% non-condensing

System Power: 220 VAC (±10%) 50±3HZ

Power wastage: 1.0 KW (Max)

Noise<65DB

X-RAY Sensor:

L-shaped array detector

24bit

Single energy

Cases

Forum for Asia 2018

Bangladesh National Museum

Guangxi Expo Center

Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.

OUR BRIEF

We always adhere to customer-centric, the principles of honesty and trustworthiness, is committed to efforts to improve and continuous innovate its own responsibility .

OUR TECHNOLOGY
We owns all of the intellectual property rights (IPR) to its core technologies ,and have a experience engineer team with senior x-ray detection exports, signal and imagine processing specialist , excellent technical support and maintance engineers.

OUR SERVICES
We strictly in accordance with the ISO9001 quality standard requirements from production research , manufacture, marketing to after services, established a complete quality management and assurance system . Also we take effective marketing management protection measures to control the products qulity ,working efficiency and service attitudes ,to ensure all our clients have our best quality products and best services.
