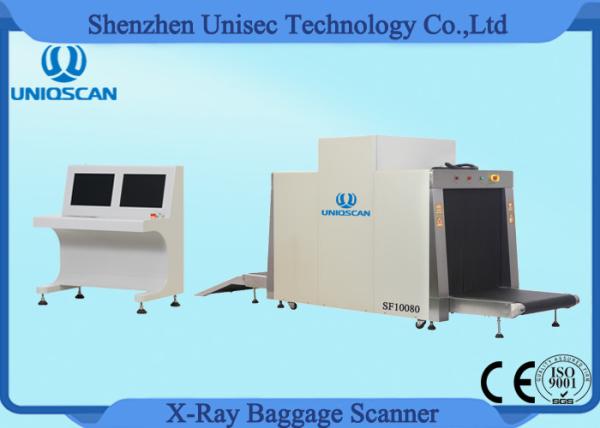

Large Opening Size Airport X-Ray Security Baggage Scanners With 1000 * 800mm

General Specifications:

• Tunnel Size : 1000 (W) ×800 (H) mm
• Conveyor Speed: 0.22m/s
• Conveyor Max Load: 230 kg
• Single inspection dosage: <1.5μGy
• Leakage radiation: <0.2µGy/h
• Wire Resolution: 38AWG
• Steel Penetration: 38mm
• Film Safety: For ISO 1600

X-RAY GENERATOR:

• Orientation: downward
• Tube Current: 0.4-0.7mA(adjustable)
• Anode Voltage: 100-160KV(adjustable)
• Angle: 80°
• Generator cooling/working periods:Sealed oil bath with forced air/100%

OPERATING ENVIRONMENT:

• Storage Temperature: -20℃ to 60℃
• Operating Temperature: 0℃ to 45℃
• Relative Humidity:20 to 95% non-condensing
• System Power: 220 VAC (±10%) 50±3HZ
• Power wastage: 1.0 KW (Max)
• Noise<58DB
• X-RAY Sensor: L-shaped array detector, 24bit , Dual energy

Image Performance System:

• Display: High-resolution 19 inch color LCD display
• Color quality: 24-Bit real colors based on materials
• Edge enhancement: Object contour edge is more distinct
• Super image enhancement: Image detail is more distinct
• Magnifier: Partial magnifying function
• Brightening/dimming: Increase/Decrease brightness of image
• Image recurrence: Display the previous twenty images and process any one of them
• Image restoration: Restore image to initial status
• Image storage: Real-time store any image and process it in operation status

Application:

• Commercial buildings;
• Factories(to find needle in clothing, shoes, bags)
• Courthouses;
• Embassies;
• Government buildings
• Military installations
• Prisons
• Mail Rooms
• Hotels
• Schools
• Convention centers
• Security checkpoints
