Uniqscan New Design 6 Zones Walk Through Security Body Scanner Door Frame Archway Metal
Detector Gate With High Resolution CCTV Camera / DVR
Parameters
| Model Number | UB500+CCTV+DVR |
| Vertical dimension | 229cm(High) x 56cm (Wide) x 19cm (Deep) |
| Vertical channel size | 2000x700mm |
| Detection door packing size | 229cm (High) x 56cm (Wide) x 19cm (Deep) |
| Net weight of main box/detection door | 60KG |
| Gross weight of main box/detection door | 65KG |
| Working voltage | 65V~264V 50/60Hz |
| Power consumption | 20W |
| Working frequency range | 4-8KHZ |
| Working environment temperature | -20℃ ~ 55℃ |
| Installation environment | (W) 100cm* (L) 200cm
(minimum range without metal) |
| Video memory storage | 128G |
| Camera | High resolution cctv camera
|
Characteristic & Function

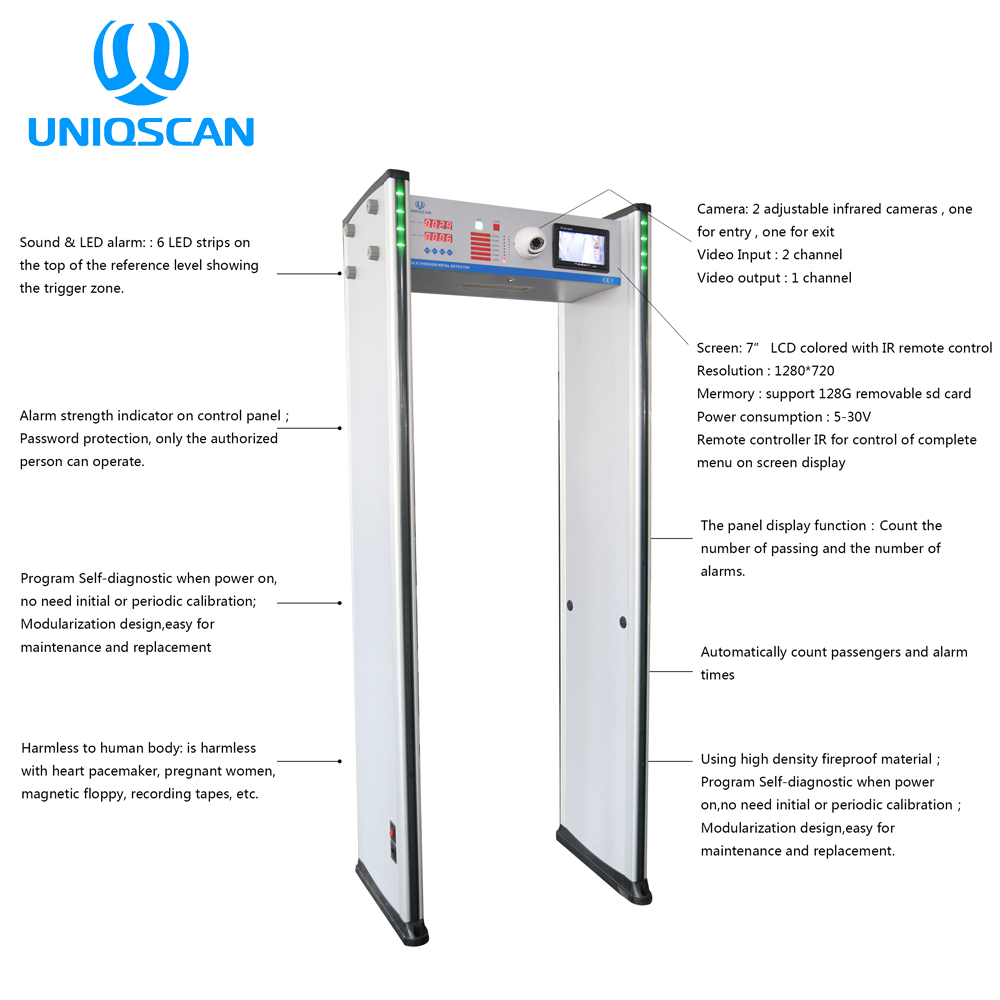

1.Six mutual over-lapping detecting zones,
2.Simultaneous alarm from multi- zones;
3.Sensitivity adjustable: Each zone has 100 sensitivity level;
4.Sound & LED alarm: Both Side LED indicator; Easily show where the
metal is;
5. Automatically count passengers and alarm times;
6.Alarm strength indicator on control panel;
7. Password protection, only the authorized person can operate;
8.Easy assembly: designed with only 2 pieces cables and 8 screws,
simply-to-follow instruction;
9. Harmless to human body: is harmless with heart pacemaker,
pregnant women, magnetic floppy,
recording tapes,etc;
10.Using high density fireproof material;
11. Program Self-diagnostic when power on,no need initial or
periodic calibration;
12.Modularization design,easy for maintenance and replacement;
13.Sensitivity Test piece: One yuan Coin, omnidirectional
detection;
14.4-8 hours backup battery (Option).
15.Video memory storage is 128G
16.Both front and rear with high resolution cctv camera.
17.2 years warranty with free parts.
Application
Exhibition center, Electronic Factory, Bank, Prison, Government
office, Hotel etc.
Packaging & Shipping
Neutral Packing:
Carton Dimension L*W*H(mm)
Door Panel:2260*550*235mm
Control Unit:750*340*240mm
Gross weight:55kg
Our Services
1. Provide free technical training, guidance and information of our
products and accessories.
2. Our technical staff could instruct our customers on the
installation of barrier gates, tripod turnstiles, flap barriers,
swing barriers, full height turnstiles, parking barrier lock and
etc, and deal with technical and quality issues.
3. We guarantee more than 10 years’ service life of our products
with 1 years’ warranty and life maintenance.
4. Once receive the customer requirements and complaints, we will
response within 24 hours.
5. Free maintenance and replacement will be provided if defects
result from quality failure of our product.
6. Our company will provide technical services by phone, fax,
e-mail, skype etc., please refer to the contact details.
7. Our company will implement the contract strictly; deliver the
products to location specified by our customers for free in
accordance with the mode of transportation.
8. Our company will provide perfect after-sale services and
technical support.
