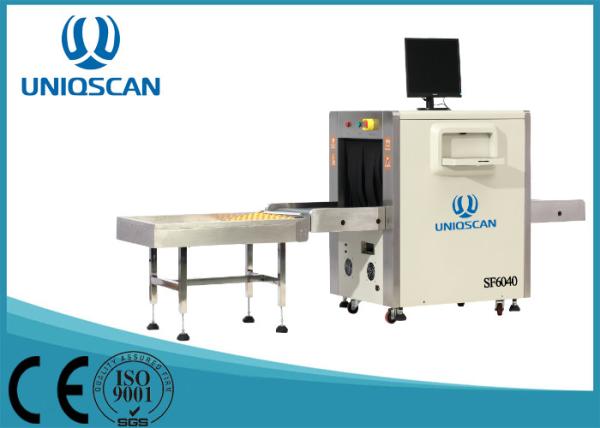

    600 * 400 Mm Airport X Ray Scanner , 150 KG 0.22m / s Conveyor X Ray Scanning Machine


    150KG Conveyor , 600*400 mm X Ray Baggage Scanner / airport xray scanner


    General Specifications:

    • Tunnel Size : 600 (W) ×400 (H) mm
    • Power Requirement: 220V AC (±10%) 50±3Hz
    • Power consumption: 1.0KW (Max)
    • Noise level: <60dB
    • Conveyor Speed: 0.22m/s
    • Conveyor Max Load: 150 kg
    • Wire Resolution: 40AWG
    • Spatial Resolution: 1.0mm Horizontal and Vertical
    • Steel Penetration: 40mm
    • Single inspection dosage: < 1.0μGy
    • Leakage radiation: <0.1µGy/h
    • Film Safety: Guarantee ISO1600 Film

    X-Ray Generator Specifications:

    • Tube Current:0.7~1.2mA
    • Anode Voltage:140~160KV
    • Cooling: Sealed oil bath with forced air
    • Duty Cycle: Rated for 100%Duty Cycle
    • Beam Direction: Upward
    • Beam Angle: 80°
    • Detector: L-shaped Array

    Image Display:

    • 19’’ High Resolution LCD Monitor
    • Display Resolution: 1280*1024;24 bit/pixel Color
    • Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
    • Image storage: 100,000 pictures in real time (can be customized)
    • Zoom: 64 Times Enlarge, Whole screen continuous observation
    • Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color
    • Edge enhancement: Object contour edge is more distinct
    • Super image enhancement: Image detail is more distinct
    • High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
    • Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
    • Brightening/dimming: Increase/Decrease brightness of image
    • Image recurrence: Display the previous twenty images and process any one of them
    • Image restoration: Restore image to initial status
    • Assist to detect drug and explosive powder

    Special features:

    • Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
    • Safety ray: Ray is transmitted under automatic control, avoiding the error
    • One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
    • Eagle eye: Capable of expediently observing the magnifying area
    • Self-diagnosis function: Give message automatically if malfunction for prompt maintenanceTIP and training software

    Environment Specifications:

    • Operating temperature/humidity: 0℃ ~ 45℃/20% ~ 95% (Non-condensing)
    • Storage temperature/humidity: -20℃ ~ 60℃/20% ~ 95% (Non-condensing)
