24 zones black Portable Walkthrough Metal Detector Gate Visual Audible Alarm

Advanced Technology:

●Mobile connection technology: realize mobile APP remote control

●IP Grade: IP67 superior waterproof performance

●Self calibration once power on

●Self diagnostic, it will inform the user when exit the system

●Start-stop technology:infrared devices with automaticstart-stop technology.

●Multi-zone technology: 24 detection zones,can change detection zones intelligently

(upgrade technology of each zone can be provided).

●Touch screen: 7-inch HDMI LCD touch screen,iPad interface style,easy to operate and understand.

Features and Functions:

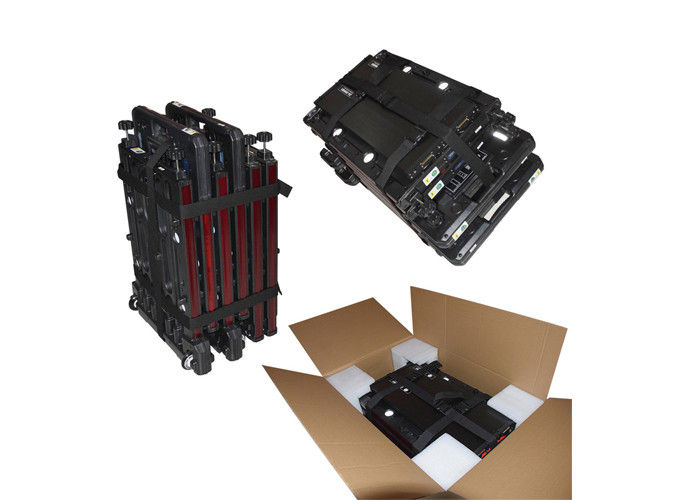

● Move after folded or installation(two move methods to choose)

● Detection technology: Even detection technology,no blind spot

● Internet technology:Remote upgrade system and remote control system

● Working band: 120 working bands

● Sensitivity of each detection zone:255 level

● Statistics: Record the pass and alarm numbers

● Query function: The system has real-time information query function

● Intelligent Standby: The system has intelligent standby operation alerts

● Detection speed: more than 60 people pass and detect in 1 minute

● Adjustable sensitivity of each detection zone

● Multi-alarm sounds to choose

● Operating frequency can be adjusted manually or automatically

Technical Parameters:

● Detection objects: knives,guns,coins

● External Dimension:2250x850x500mm

● Passage Dimension: 2051x710x500mm

● Fold Dimension:889x606x484mm

● Packing Dimension: 948x666x525mm

● Humidity: 99%, non-condensing

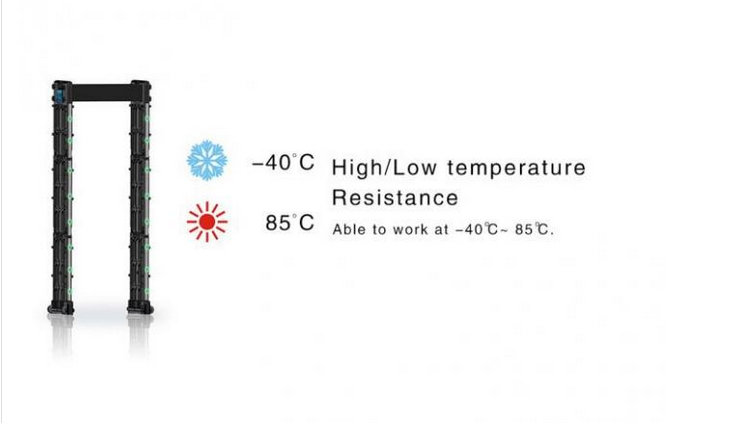

● Working environment: -40 ℃~85 ℃

● Weight: NW 42KG, GW 50KG

● Input : AC 110V~240V/50Hz~60Hz

● Output : DC 12V/5A 12W

● Power supply: the whole system is equipped with polymer battery,life time 6-24 hours optional.

Packing:

●Packing Dimension:1000*700*540mm

●Net Weight: 33kg

●Gross weight: 40kg
