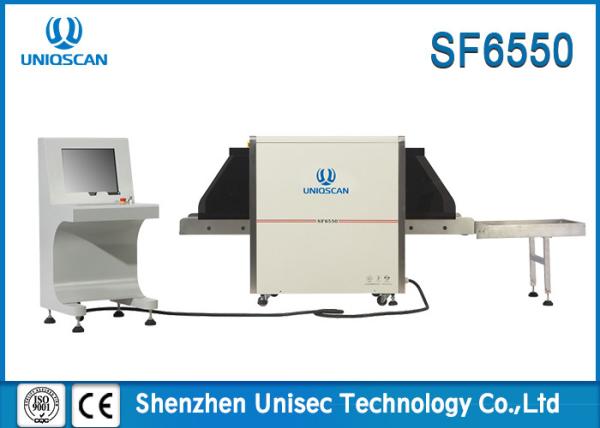

6550 Medium Tunnel X Ray Baggage Scanner Multi - Energy For Airport

    Buy cheap 6550 Medium Tunnel X Ray Baggage Scanner Multi - Energy For Airport from wholesalers

    Buy cheap 6550 Medium Tunnel X Ray Baggage Scanner Multi - Energy For Airport from wholesalers
    • Buy cheap 6550 Medium Tunnel X Ray Baggage Scanner Multi - Energy For Airport from wholesalers

    6550 Medium Tunnel X Ray Baggage Scanner Multi - Energy For Airport

    Ask Lasest Price
    Brand Name : Uniqscan
    Model Number : SF6550
    Certification : CE ISO
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100sets per month
    Delivery Time : in one week
    • Product Details
    • Company Profile

    6550 Medium Tunnel X Ray Baggage Scanner Multi - Energy For Airport

    6550 medium Tunnel Multi-energy Baggage Scanner Prisons Security X Ray Scanner


    General Specifications

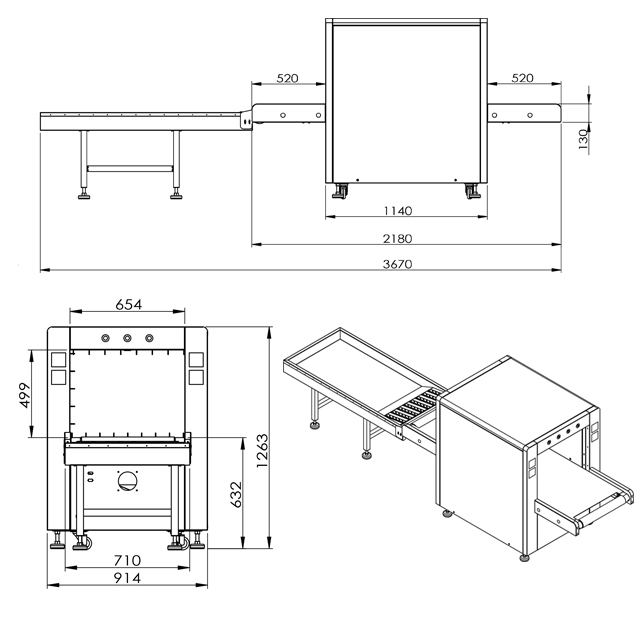

    Tunnel Size :650(W) ×500 (H) mm
    Conveyor Speed:0.22m/s
    Conveyor Max Load:170 kg
    Single inspection dosage:< 1.32μGy
    Wire Resolution:40AWG (0.0787mm metal line)
    Steel Penetration:40mm
    Film Safety:For ISO 1600

    X-Ray Generator

    Orientation:Upward
    Tube Current:0.4~1.2mA(adjustable)
    Anode Voltage:100~160KV(adjustable)
    Angle:80°
    Generator cooling/working periods:Sealed oil bath with forced air/100%

    Operating Environment

    Noise<65DB
    Storage Temperature:-20oC to 60oC
    Operating Temperature:0oC to 45oC
    Power wastage:1.0 KW (Max)
    System Power:220 VAC (±10%) 50±3HZ
    Relative Humidity:20 to 95% non-condensing
    X-RAY Sensor:L-shaped array detector, 24bit, Dual energy

    Image Performance System:

    Display:High-resolution 19 inch color LCD display
    Color quality:24-Bit real colors based on materials
    Edge enhancement:Object contour edge is more distinct
    Super image enhancement:Image detail is more distinct
    High penetration display:

    Increase the contrast of bright area in image to make

    the area that is easy to penetrate appear more

    clearly

    Low penetration display:

    Increase the contrast of dark area in image to make

    the area that is difficult to penetrate appear more

    clearly

    Magnifier:Partial magnifying function
    Brightening/dimming:Increase/Decrease brightness of image
    Image recurrence:

    Display the previous twenty images and process

    any one of them

    Image restoration:Restore image to initial status
    Image storage:

    Real-time store any image and process it in

    operation status



    Our Services:
    • One-to-one exclusive service
    • Online diagnosis service for after-sales service
    • 24 months warranty for providing free spare parts
    • Free training in factory for your engineer
    • Accept arranging engineer go abroad for trainning should be paid
    • Tender protection with authorization certificate
