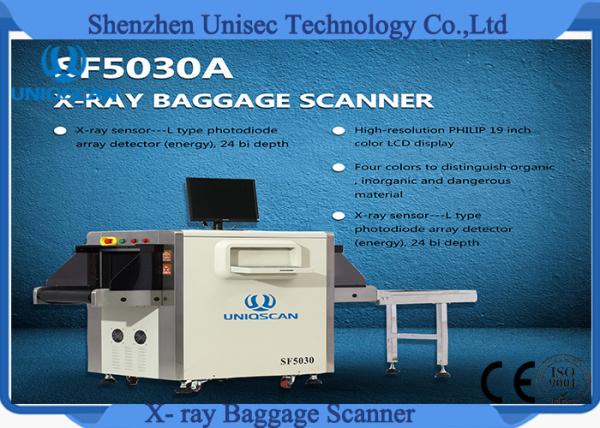

5030 Singly Generator Airport X Ray Baggage Scanner Machine Checked Laggage

    Buy cheap 5030 Singly Generator Airport X Ray Baggage Scanner Machine Checked Laggage from wholesalers

    Buy cheap 5030 Singly Generator Airport X Ray Baggage Scanner Machine Checked Laggage from wholesalers
    • Buy cheap 5030 Singly Generator Airport X Ray Baggage Scanner Machine Checked Laggage from wholesalers

    5030 Singly Generator Airport X Ray Baggage Scanner Machine Checked Laggage

    Ask Lasest Price
    Brand Name : Uniqscan
    Model Number : 5030a
    Certification : CE; ISO
    Price : negociate
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 100pcs per month
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    5030 Singly Generator Airport X Ray Baggage Scanner Machine Checked Laggage


    5030 Singly Generator Airport X Ray Baggage Scanner Machine Checked Laggage


    Competitive Advantage:

    • Integrated, cost Effective, Turn-Key Security
    • Fit for small Baggage and Parcel Security Inspection.
    • Increased detection capability
    • Friendly interface for ease-of-use
    • Reliable performance and uncompromising value

    Specifications:

    Tunnel Size:500(W)*300(H)mm
    Conveyor Speed:0.22m/s
    Conveyor Max Load:150kgs
    Single inspection dosage:< 1.0μGy
    Wire Resolution:10AWG
    Penetration:10mm Steel
    Film Safety:Guarantee ISO1600 Film
    X-ray Leakage:<0.1 μGy/h (at a distance of 5cm From external housing)
    Generate direct:Upward
    Generate angle:60 degree
    Anode Voltage:80-100Kv
    Anode power:0.7 to 1.2mA
    Cooling / Duty Cycle:Oil Cooling /100%
    X-ray Sensor:L-Shaped Photodiode Array (mono-energetic), 24bit Deep
    Monitor:High Resolution Color, LCD Accord, 19 inch
    Image Processing:

    Edge enhancement, image strengthening, image lightening,

    reducing darkening, image returning, image retrieval.

    Image Grey Level:4096
    Image Max Resolution:1024 * 1280 pixel
    Image Processing:24bit for processing real time
    Image storage:Storage 100000 pictures in real time
    Zones & Zoom:

    64 Image regions, 2, 4, 8, 16,32,64 Times Enlarge, Whole screen

    continuous observation

    Operation temperature/Humidity:0℃-45℃/20%-95%(non-condensing)
    Storage Temperature/Humidity:-20℃-60℃/20%-95%(non-condensing)
    Operation Power:220VAC(±10%)50±3Hz
    Power Consumption:1.0 KW (max), 0.3KW(working)
    Noise:<60db

    Application:

    End userRecommend X Ray Baggage Scanner model NO.
    Airports, Transport terminalsSF6040; SF6550; SF10080; SF100100
    Factories (to find needle in clothing, shoes, bags),SF5030; SF5636; SF6040; SF6550
    Courthouses, Embassies, BuildingsSF5030; SF5636; SF6040; SF6550
    Military installationsSF5030; SF6040; SF6550; SF8065; SF100100
    Prisons, Hotels, Schools, Convention centersSF5030; SF5636; SF6040; SF6550; SF10080
    Security checkpoints,Special events locationSF5030; SF6040; SF6550; SF8065; SF10080
