    L Shaped Array 80° 40AWG SF6040 X Ray Baggage Scanner

    Ask Lasest Price
    Brand Name : Uniqscan
    Model Number : SF6040
    Certification : CE. ISO,
    Price : USD 10600-11600 SET
    Payment Terms : T/T, Western Union
    Supply Ability : 100 set per month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    L Shaped Array 80° 40AWG SF6040 X Ray Baggage Scanner

    High Quality ISO/CE Certificated X-Ray Baggage Scanner For Security Checking


    Product Point:

    1..............................Tunnel Size : 600 (W) ×400 (H) mm
    2..............................24 bit , Dual Energy
    3..............................40mm Steel Penetration
    4..............................Single inspection dosage: < 1.0μGy

    5..............................Film Safety: For ISO 1600


    X-Ray Generator Specifications:


    Tube Current:0.7-1.2mA
    Anode Voltage:140~160KV
    Detector:L-shaped Array
    Cooling:Sealed oil bath with forced air
    Duty Cycle:Rated for 100%Duty Cycle
    Beam Angle:80°

    Computer Specification:


    Processor:I3-4340 (Dual core four thread) 3.6 GHZ 22nm 54W
    Memory:4GDDR3 Loptop Memory
    Hard Disk :1T

    X-RAY Sensor: L-shaped array detector, 24bit


    Image Performance System:
    1. Display: High-resolution 19 inch color LCD display
    2. Color quality: 24-Bit real colors based on materials
    3. Edge enhancement: Object contour edge is more distinct
    4. Super image enhancement: Image detail is more distinct
    5. High penetration display: Increase the contrast of bright area in image to make the area appear more clearly
    6. Low penetration display: Increase the contrast of dark area in image to make the area appear more clearly.
    7. Magnifier: Partial magnifying function
    8. Brightening/dimming: Increase/Decrease brightness of image
    9. Image recurrence: Display the previous twenty images and process any one of them
    10. Image restoration: Restore image to initial status
    11. Image storage: Real-time store any image and process it in operation status

    Multi-energy: High/low energy: Switch from high energy to low energy
    Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green
    Assist to detect drug and explosive powder

    Special features:
    1. Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
    2. Safety ray: Ray is transmitted under automatic control, avoiding the error
    3. One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
    4. Eagle eye: Capable of expediently observing the magnifying area
    5. Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
    6. TIP and training software , free programmable keys , real time diagnostic
    7. Display date/time , baggage counter , User ID number
    8. Review feature , recall previously image , zoom overview , step less zoom.

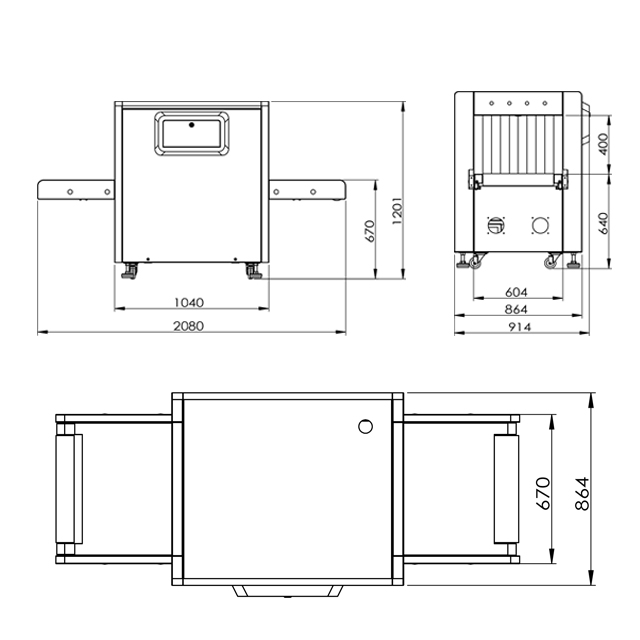

    Detailed Pictures:



    Company Information:


    Shenzhen Uniqscan Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.
