Full Height Turnstile Security Systems , 304 Stainless Steel Pedestrian Access Gate Single Lane

    Buy cheap Full Height Turnstile Security Systems , 304 Stainless Steel Pedestrian Access Gate Single Lane from wholesalers

    Buy cheap Full Height Turnstile Security Systems , 304 Stainless Steel Pedestrian Access Gate Single Lane from wholesalers
    • Buy cheap Full Height Turnstile Security Systems , 304 Stainless Steel Pedestrian Access Gate Single Lane from wholesalers

    Full Height Turnstile Security Systems , 304 Stainless Steel Pedestrian Access Gate Single Lane

    Ask Lasest Price
    Brand Name : UNIQSCAN
    Model Number : UT8000-B
    Certification : CE, ISO certificates
    Price : negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 800/month
    Delivery Time : 5 working days after got the payment
    • Product Details
    • Company Profile

    Full Height Turnstile Security Systems , 304 Stainless Steel Pedestrian Access Gate Single Lane

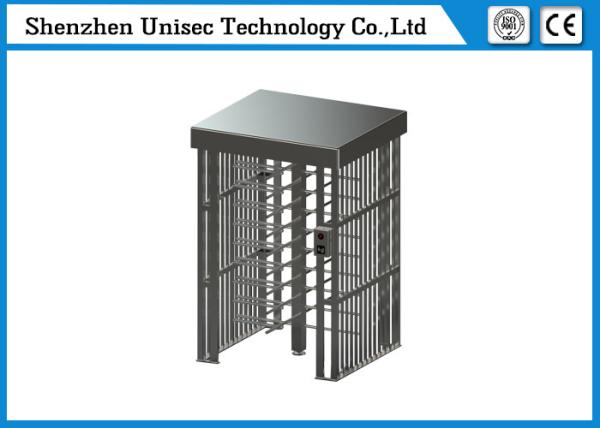

    304 Stainless Steel Single Lane Full Height Turnstile Gate

    1. Standard Specification:


    Material1.5 mm thickness SUS#304 stainless steel
    Power consumption60~70w
    DimentionL1700*W1460*H2300 mm ( Support customize )
    Operating voltageAC220V/110V, 50~60Hz
    Operational driveDC brushless 24V mechanical mechanism ( Semi automatic ), full automatic drive optional
    Pass rate40 person/min
    Work life>5 million times
    Arm diameter38 mm
    Communication portTCP/IP
    Rotate angle120° ( 90° optional )
    Power consumption60~70 W
    Open/Close time0.2s
    Reset time after breaking down7.0s
    Passage width550mm ( Support customize )
    Input interfacerelay drt contact signal; +12V level signal or pulse width > 100ms 12V pulse, dry current >10 mA
    Working environment-30℃ ~ 70℃
    Gross weight300 KG

    Function:


    1. Malfunction self-inspection
    2. Adjust running status of device by pressing the small built-in keyboard pf the control board
    3. Operation mode: Both directions can be set as controlled mode or free mode through controller;
    4. Position detection: by limit switch
    5. Warning indicator: green arrow indicates “Passage Open”, red cross indicates “Passage Closed”
    6. Directional mode: Unidirectional and Bidirectional operation features as “Only Entrance”, “Only Exit”, “Entrance and Exit”
    7. Available with 3-arm, 120 degree spacing ( default ), or 4-arm, 90 degree spacing ( optional )
    8. Auto-reset: " Go" signal will be cancelled if passage not completed within pre-set time ( default 7s )
    9. Operation safety: Electrical and mechanical safety for all component.
    10. Emergency escape function: obstacle auto close after power off
    11. When power off, the rotor assembly will be free access mode
    12. Anti-collision: when someone kick the arms suddenly, the rotor will rotate a small degree to cushion protects rotor assembly from damage. After a small moment, the arm will auto-reset to original position.(Brushless motor + encoder + clutch combine)

    13. Pure mechanical semi-auto mode: after reading card, the passager need push arm by hand until he finished passage.

    Brushless motor full-auto mode: After reading card, the passager push the arm at a little strengh, the arm will auto rotate until he fihisned passage.

    14. Remote control and management function: through the management computer to realize remote control and management.

    15. Can be integrated with fingerprint, face recognition, RFID reader, barcode reader, etc.
