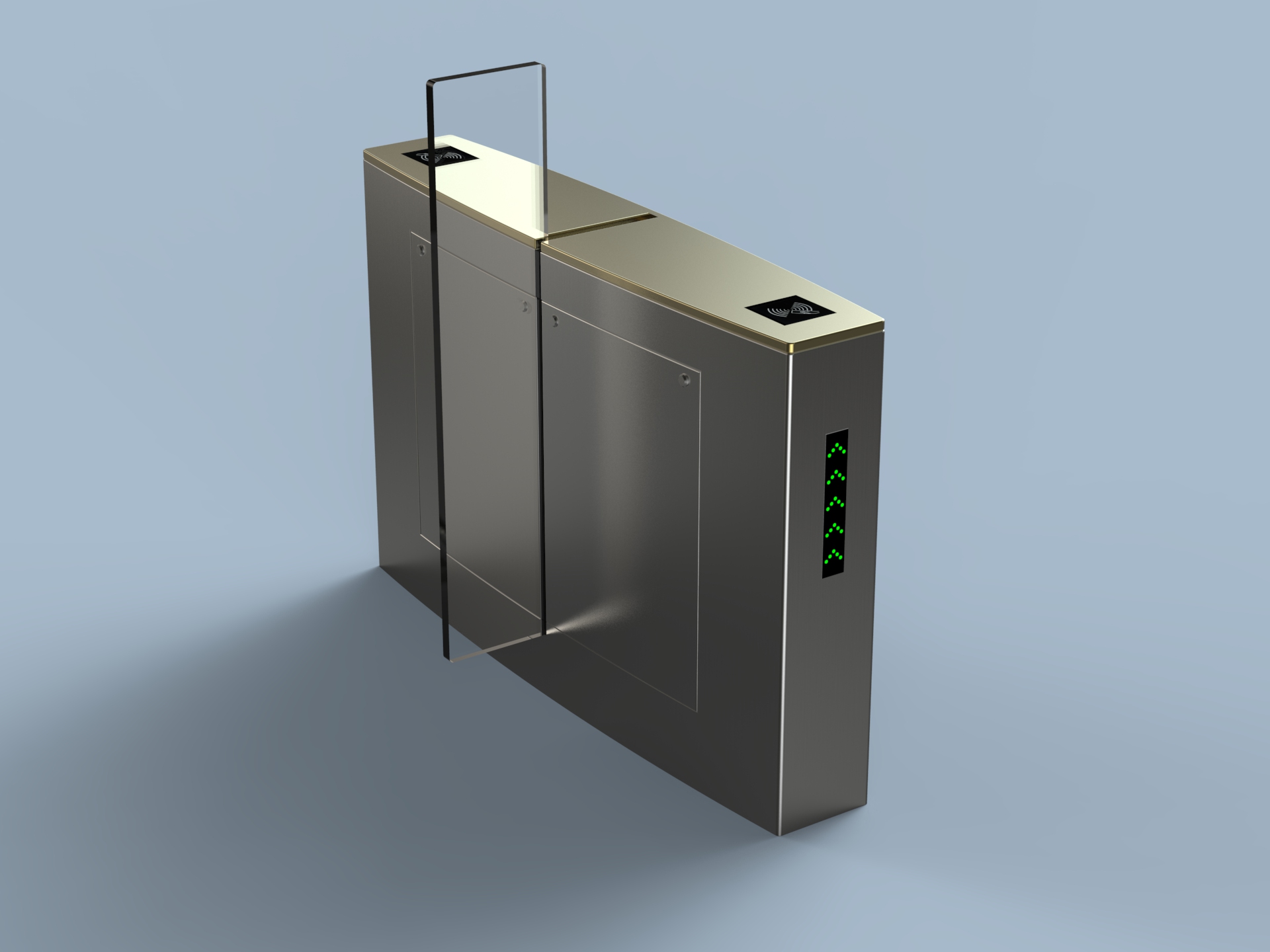

Automatic pedestrian access control security sliding turnstile
speed gate
Technical Parameters:
| Power Supply | AC220V±10% / 50HZ |
| Operating Temperature | -45°C-60°C |
| Relative Humidity X | Relative Humidity <95% |
| Access Width | 550 mm |
| Passing Speed | 50 persons/min. (IC Card) |
| Motor | 130W/24V |
| Motor Operation Speed | 160R/Min |
| Communication Distance | ≤1200M |
| Input Connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal,
Current>100ms |
| Communication Connection | RS485 Communication Module Standard |
| Material | Stainless Steel 304 |
| Running Life | 5-8 Million (Continuous Opening and Closing Operation) |
| Protect Level | IP43 |
| Colour | Stainless Steel Brushed/Power Coating (Optional), or other Colour you like |
| Operation Place | Subway Station, Hoverport, Tourism Sports, Exhibition, Swimming
Hall, Residence Area, Enterprise Entrance and Exit Attendance, Gateway
Guard, Charge Management, Special Access Control |
Functions & Features:
The metal house is shaped by high quality 304# stainless steel,
with the trait of firmness, antirust, daintiness, safety, easy
cleaning and maintenance.
Machinery and electrical integration design
Interface for variety of card reader: such as: IC / ID card
readers, bar codes, fingerprints, etc.
Auto reset function. If the passenger does not pass the way in the
valid time, the system will lock up again. The valid passing time
is 5 seconds.
Arms automatically open when power off, and auto-close when power
on
Fault self-checking function, easy for using and maintenance
Through the interior buttons of the main control panel to set the
operational status of equipment
Infrared anti-clamping function, by entering obstacles while return
,arm will automatically reset or stop working within the required
time with little force
Sound & light alarm function, automatic alarm in case of illegal
entering
LED Direction-Indicator
Interface for passage number counter (optional)
Phonation indicator (optional)
The machine can be used indoors and outdoors
PRODUCT INFORMATION:
Item: Automatic Speed Gate
Model: UT590-C
Brand: UNIQSCAN
Material: #304 High Grade stainless steel
Usage Parking lots/toll gate/high way/goods yard/railway crossing
MOQ: 1 Set
ODM/OEM Accepted
Shipping Ways By sea, by air, or by Express (DHL,UPS, FEDEX,TNT,
etc.)
Payment Terms: T/T, Western Union, Money Gram, Paypal or L/C
Package: Polywood box, or according to your requirements
Certification CE, ISO
1. Operation:
[1] Two directions controlled / One direction controlled
[2] LED direction indication
[3] Flowing speed:
50 persons / minute in the opening mode.
35 persons / minute in the closing mode.
[4] Illegal invasion sound alarm.
[5] Anti-strike function
[6] Keep open when the power off.
