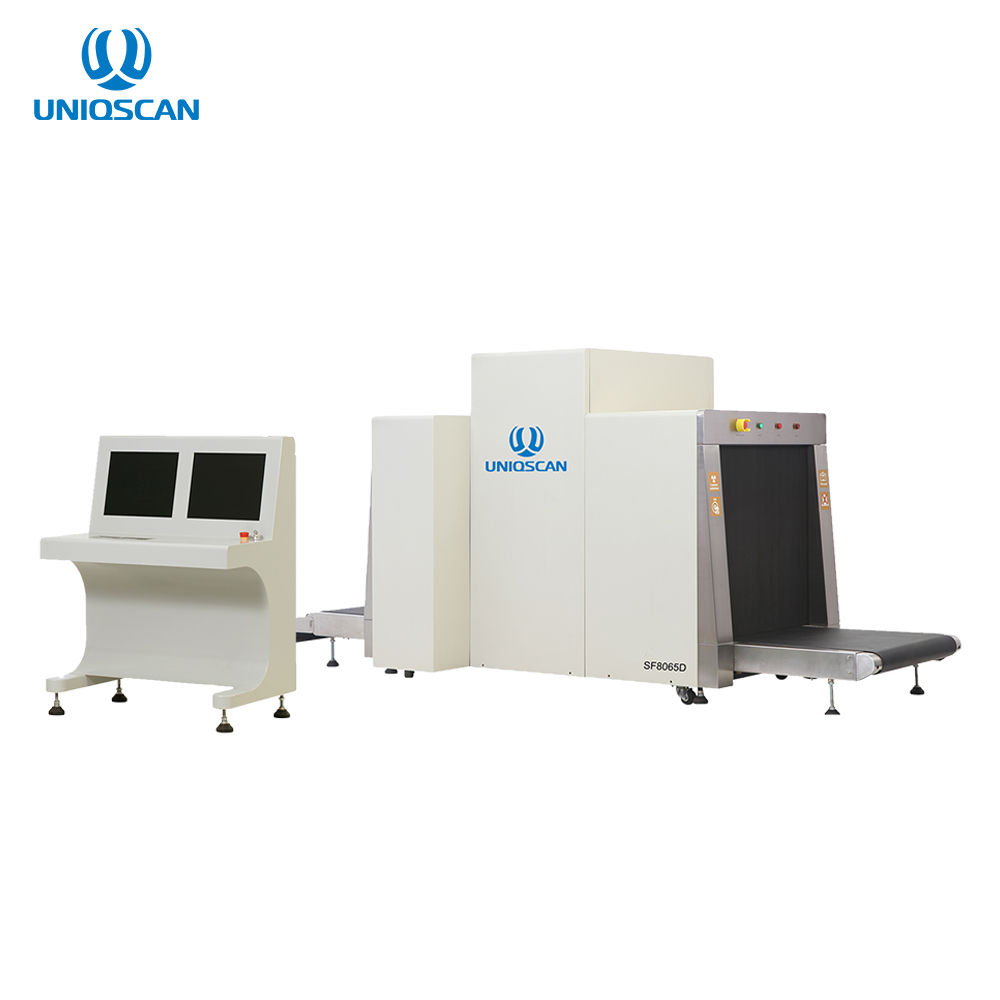

SF8065 Dual Energy Security Scanner Equipment X-Ray Baggage
Scanning Machine
General Specifications:
| Tunnel Size : | 800(W) ×650 (H) mm |
| Power Requirement: | 220V AC (±10%) 50±3Hz |
| Power consumption: | 1.0KW (Max) |
| Noise level: | <60dB |
| Conveyor Speed: | 0.22m/s |
| Conveyor Max Load: | 200 kg |
| Wire Resolution: | 40AWG |
| Spatial Resolution: | 1.0mm Horizontal and Vertical |
| Steel Penetration: | 38mm |
| Single inspection dosage: | < 1.15μGy |
| Leakage radiation: | <0.14µGy/h |
| Film Safety: | Guarantee ISO1600 Film |
X-Ray Generator Specifications:
| Tube Current: | 0.4~1.2mA |
| Anode Voltage: | 100-160KV |
| Detector: | L-shaped Array |
| Cooling: | Sealed oil bath with forced air |
| Duty Cycle: | Rated for 100%Duty Cycle |
| Beam Angle: | 80° |
Computer Specification:
| Processor: | E5800 Dual-core 3.2G 45nm.2M L2 CAHE,FSB 800MHZ |
| Memory: | 2G DDR3 133MHZ 240PIN |
| Hard Disk : | 500G |
Special features:
Network interface: Capable of connecting to LAN, and support
multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding
the error
One-key shutdown control: Just rotate the key to shut down the
machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction
for prompt maintenance
Detailed Pictures:
- Airports, seaports and public transportation
- Banks and financial institutions
- Schools and sports stadiums
- Churches and lecture halls
- Hospital ER and MRI room
- Hotels, conference centers and casinos
- Courthouses, police facilities and government
- Prisons and jails
- Embassies and broadcast studios
- Power plant and research center
- Military bases
Our service
Company Information:
Shenzhen Unisec Technology Co., Ltd is a professional security
scanner equipment manufacturer, specialized the development and
research in the x-ray imagine tehnology, metal detection
technology, explosive detection, liquid detection and relative
security services.
We owns all of the intellectual property rights(IPR) to its core
technologies,and have a experience engineer,sales and service team.
Products widely used in airport, railway station, bus station,
electronic factory, exhibition, government office, jail, court
house...etc. Wins a good reputation from end users from China and
overseas.
We strictly in accordance with the ISO9001 quality standard
requirements from production research, manufacture, marketing to
after services, established a complete quality management and
assurance system, to ensure all our clients have our best quality
products and best services.
